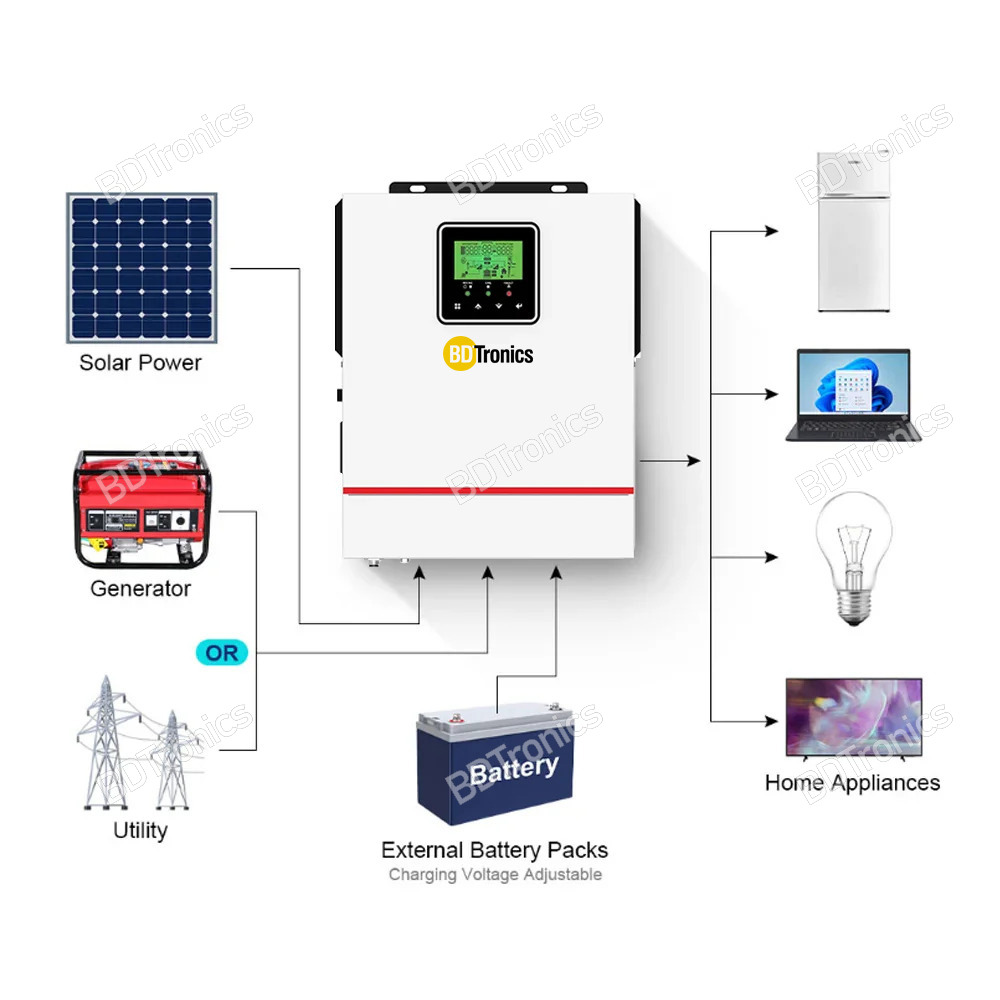

The advanced hybrid solar inverter is designed to intelligently manage power sources, prioritizing solar energy, battery storage, and utility grid input to ensure an uninterrupted and optimized power supply. With a user-friendly LCD interface, users can configure power settings, charging parameters, and safety features for customized energy management.

Highlights:

• 1 Year Warranty
• 1250VA/ 1000W (1KW)  Pure Sine Wave Off-grid/ Hybrid Inverter
• 12V DC Battery Voltage
• 150V Max Solar Input Voltage (PV open circuit voltage/ VOC)
• 40A Battery Charge Current from AC/Grid
• 40A Solar Charge Current (MPPT)
• Supports Flooeded Lead Acid (Pb)/ Tall-tubular batteries
• Supports Lithium Iron Phosphate LiFePO4 batteries
• 10mSec switching time

Features:

1. Output Source Priority Configuration

• Utility First (Default): Utility power supplies the load primarily. Solar and battery power are utilized only if the utility source is unavailable.

• Solar First: Solar energy powers the load first. If insufficient, the utility source supplements the power. The battery is used as a last resort.

• SBU Priority: Solar energy powers the load first, with battery backup. Utility power is used only when battery voltage reaches the low-level threshold.

2. Maximum Charging Current Adjustment

• Configurable charging current for solar and utility sources.

• Adjustable between 10A and 40A (model-dependent).

• Supports efficient battery charging to prevent overloading.

3. AC Input Voltage Range

• Appliance Mode (Default): Operates within 90V - 280V AC.

• UPS Mode: Operates within a 170V - 280V AC range for high-priority applications.

4. Battery Type Selection

• AGM (Default), Lead Acid/ Tall Tubular/ Flooded, or User-Defined Mode.

• User-defined mode allows custom charge voltages and DC cut-off thresholds.

5. Auto Restart Features

• Overload Protection: Restart enabled or disabled after overload occurs.

• Overtemperature Protection: Restart enabled or disabled based on temperature limits.

6. Output Configuration

• Frequency Selection: 50Hz (Default) or 60Hz.

• Voltage Output: Configurable between 220V, 230V (Default), and 240V.

7. Utility Charging Current Adjustment

• Adjustable charging current for utility input from 2A to 40A.

• Ensures optimal charging efficiency based on load requirements.

8. Smart Battery Management

• Setting Voltage for Switching Power Sources (SBU Mode)

  • Selectable thresholds ensure a seamless transition between battery and utility power.

  • Models available for 12V battery configurations.

  • Fully customizable bulk charging and floating charging voltages.

9. Charger Source Priority

• Utility First: Charges batteries primarily using grid power.

• Solar First: Prioritizes solar energy for battery charging.

• Solar & Utility (Default): Simultaneous charging from both sources.

• Solar Only: Only solar energy is used for battery charging.

10. Audible & Visual Alerts

• Alarm Control: Enables/disables alerts for system events.

• Auto Return to Default Display: Configurable display preferences.

• Backlight Control: Allows turning the LCD backlight ON/OFF for power saving.

11. Additional Protection Features

• Overload Bypass Mode: Allows the inverter to switch to line mode during overload conditions.

• Fault Code Recording: Keeps logs of past errors for troubleshooting.

• Primary Source Interruption Alerts: Enable or disable beep alerts when the primary power source is disrupted.

Specifications:

• Rated Power 1000W
• Input voltage: 230VAC
• AC voltage regulation: ±5%
• Effciency MPPT (peak) : 98%
• Efficiency Inverter (peak): 94%
• Transfer/ switching time: 10mS
• Battery voltage: 12V DC
• Floating charge voltage: 13.5V DC
• Overcharge protection: 16V DC
• Solar charger type: MPPT
• Max Solar power: 600W
• MPPT range: 20-150VDC
• Maximum Solar voltage (open circuit): 150VDC
• Max MPPT charging current: 40A
• Max Grid/ AC charging current: 40A
• Max charging current (MPPT+AC): 80A
