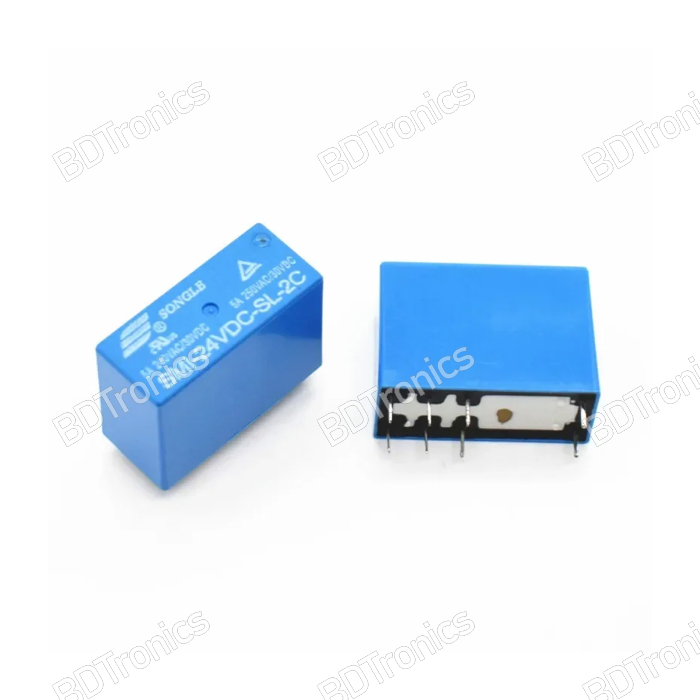

The 24V 5A Songle Relay 8-Pin DPDT (Double Pole Double Throw) is a reliable and versatile electromagnetic relay designed for switching applications that require moderate current handling. With a 24V DC coil voltage and a contact rating of 5A, this relay is suitable for a variety of industrial, automotive, and consumer electronic applications. Its 8-pin configuration and durable construction ensure effective performance and long-lasting reliability.

Key Features:

• Coil Voltage: 24V DC
• Contact Rating: 5A at 250V AC / 30V DC
• Contact Configuration: DPDT (Double Pole Double Throw)
• Coil Power Consumption: Typically 0.36W
• Coil Resistance: Approximately 480Ω
• Contact Material: Silver Alloy for enhanced electrical conductivity and durability
• Mounting Type: Through-hole (PCB mount)
• Dimensions: Compact design to fit into various applications
• Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)
• Insulation Resistance: ≥ 1000MΩ at 500V DC
• Dielectric Strength: 4000V AC between coil and contacts

Applications:

• Industrial Automation: Ideal for controlling machinery, equipment, and automation systems requiring reliable switching of multiple circuits.
• Automotive: Suitable for automotive applications, such as controlling lights, motors, and other electrical accessories.
• Home Appliances: Effective for high-power household appliances, providing reliable on/off control for components like heating elements and compressors.
• Consumer Electronics: Useful in electronics projects and devices that require dependable relay control for various functions.
