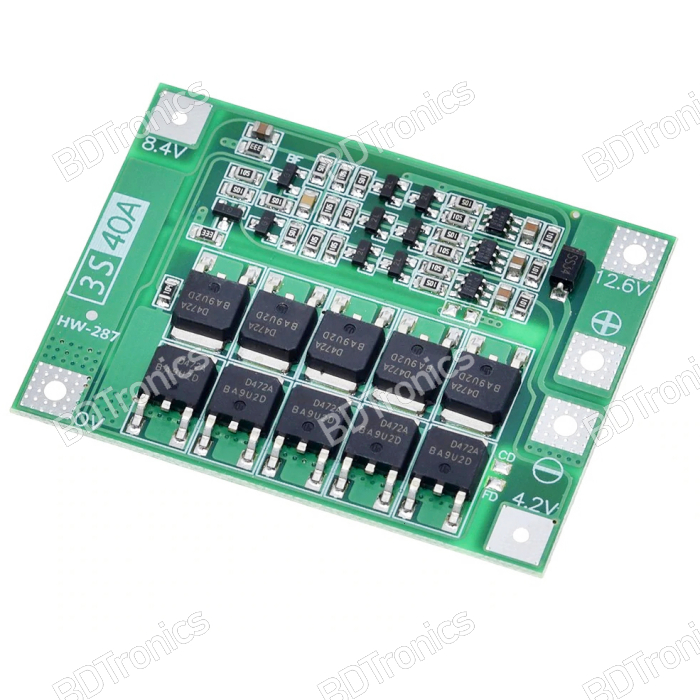

The 3 Series 40A 18650 Lithium Battery Protection Board 11.1V 12.6V with Balance for Drill Motor Lipo Cell Module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube. It provides a continuous discharge of 40A, 100mA balanced current, for electric drill/sprayer/LED lights/low power inverter. Featured by Sharvi Electronics (if the cooling environment is not good, please reduce the load current use).The Scope of Nominal voltage of 3.6V, 3.7V lithium battery (including 18650,26650, a polymer lithium battery) where Charging voltage can be range between 16.8V to 18.1V The board operates smoothly with Continuous charge current of (upper limit): 20A. The balanced version is suitable for starting current below 80A, power 135W below the drill (with balance). This product is known as 18650 Lithium Battery Charger, 3S 20A Li-ion Battery, 3S 20A Li-ion Lithium Battery, 3S 40A, 3S 40A Li-ion Battery, 3S 40A Li-ion Lithium Battery, 3S Battery charger, 3S Lithium Battery, battery charger, Lithium Battery Charger, Polymer battery charger.

Specifications:

• Battery : 3 Cell
• Overcharge detection voltage (V) : 4.25 ± 0.025
• Over-discharge detection voltage (V) : 2.50 ± 0.08
• Charging voltage: 12.6V – 13.6V
• Overcurrent Protection: 40A
• Working current: 20A
• Operating Temperature: -40 ~ +85°C
• Length: 60mm
• Width: 41mm
• Height: 3.5mm
• Weight: 9gm

Application:

• Battery pack
• Consumer electronics product 12V voltage rating
• Power supply
• Power bank and charger

Package Includes:

• 1 x 3S 40A Li-ion BMS
