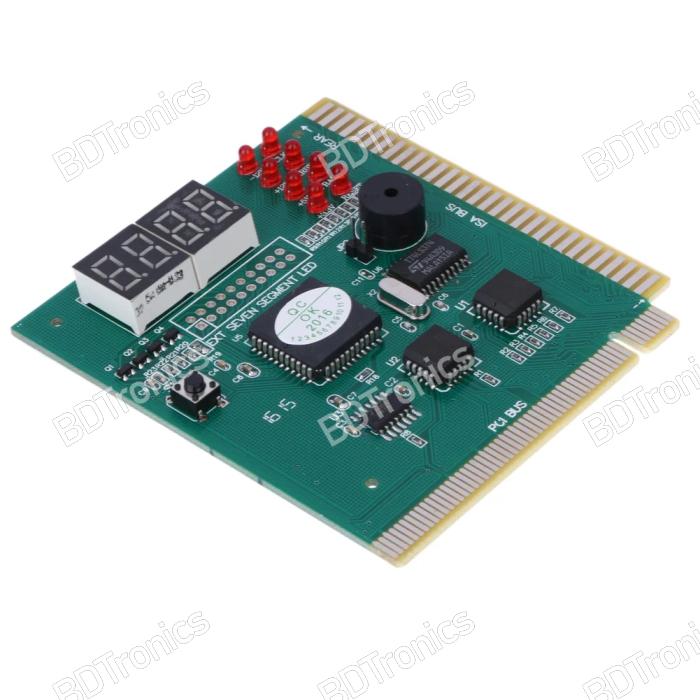

This 4-Digit LCD Display PC Analyzer is a professional diagnostic tool designed for troubleshooting and diagnosing motherboard issues in computers. It is compatible with both ISA and PCI bus slots, making it versatile for older and modern systems. This tool helps identify defects in CPU, memory, video cards, and other components using POST (Power-On Self-Test) codes and an LED power source indicator for comprehensive diagnostics.

Features:

• High Compatibility:
  Works with all motherboards that have PCI and ISA bus slots.

• 4-Digit LCD POST Code Display:
  Displays diagnostic POST codes using a dual, dot-matrix hexadecimal format, providing detailed insights into motherboard status.

• Power Source Indicators:
  LED indicators for +5V, +12V, +3.3V, and -12V ensure quick identification of power supply issues.

• Audio Diagnosis:
  Built-in speaker with sound coding to signal motherboard defects.

• Dual-Side POST Code Display:
  Allows users to view codes from both the PCB component side and the solder side for easier access.

• Previous POST Code Recall:
  Recall previous POST codes at the touch of a button for enhanced troubleshooting.

• Self-Checking Remote Display:
  Facilitates self-diagnosis for efficient and accurate results.

• Compact Design:
  Lightweight and portable, with dimensions of 8.9 cm x 8.3 cm x 0.2 cm, making it easy to carry and store.

Specifications:

• Color: As shown in the picture
• Size: 8.9 cm x 8.3 cm x 0.2 cm (L x W x H)
• Supported Buses: ISA and PCI
• Indicators: LED for power source status (+5V, +12V, +3.3V, -12V)
• Display: 4-Digit LCD dual POST code display

Package Includes:

1. Main Diagnostic Card – For motherboard diagnostics.
2. Ribbon Cable – To connect the card to your motherboard.
3. English Manual – Easy-to-follow guide for setup and use.
