The TCRT5000L sensor is a type of infrared (IR) reflective sensor module that can be used for various applications including line following robots, proximity sensing, and object detection. Here are some details about the TCRT5000L sensor:

Working Principle: The TCRT5000L sensor consists of an infrared emitter (usually an IR LED) and a phototransistor (light-sensitive transistor) in a single package. The emitter emits infrared light, which is reflected off a surface and detected by the phototransistor.

Detection Method: It detects the reflected infrared light to determine the presence or absence of an object or to detect changes in reflectivity (for example, in line-following robots where it detects lines on the ground).

Features:

• Compact module with built-in emitter and detector.
• Typically operates at a wavelength of around 950 nm.
• Analog output (voltage that varies depending on the detected light intensity).
• Digital output can be obtained using external circuitry (comparator) to set a threshold.

Applications:

• Line Following Robots: Used to detect lines on the ground.
• Object Detection: Can detect the presence of objects by reflecting light off them.
• Proximity Sensing: Determines the distance of an object based on the strength of the reflected IR light.
• Speed and RPM Measurement: In some applications, it can be used to measure the speed of rotating objects (by detecting interruptions in reflected light).

Specifications:

• Operating Voltage: Typically 5V DC.
• Current Consumption: Low current consumption, suitable for battery-operated devices.
• Operating Distance: Effective range varies, but typically a few millimeters to a few centimeters depending on the reflective surface and ambient light conditions.
• Response Time: Fast response time in detecting changes in reflectivity.

Module Configuration:

The TCRT5000L module usually consists of the TCRT5000 sensor and additional circuitry to provide convenient interfacing with microcontrollers or other digital circuits. It simplifies the integration of the sensor into various projects.

Overall, the TCRT5000L is a versatile sensor module for detecting reflected infrared light, making it suitable for a range of applications where proximity sensing or object detection is required.

How to build a line follower robot with TCRT5000L?

To build a line follower robot using an Arduino Uno and a 5-channel TCRT5000L infrared tracking sensor module, you will need to write an algorithm that processes the sensor data and controls the movement of the robot's motors.

Overview of the Algorithm:

1. The robot will follow a black line on a white surface.
2. The 5-channel IR sensor will detect the line and provide feedback to the Arduino.
3. Based on the position of the black line, the robot will adjust its movement by turning left, right, or moving straight.

Materials Needed:

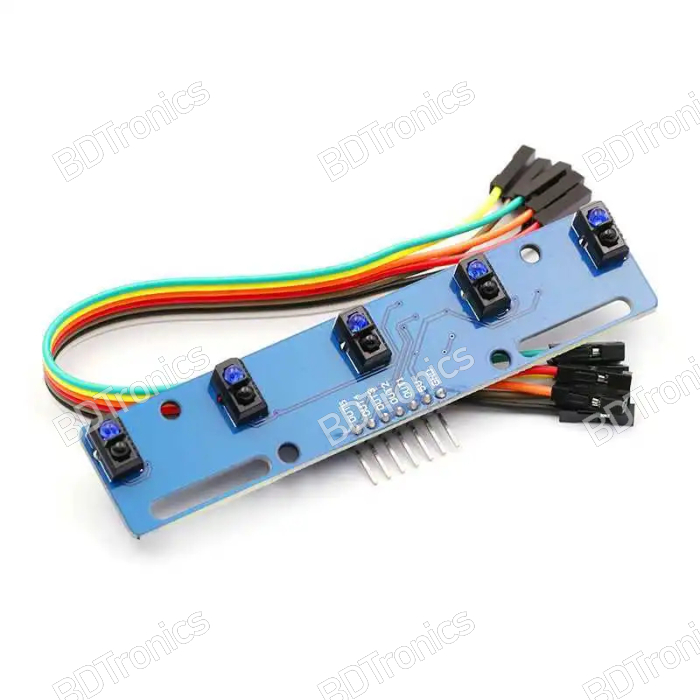

• 5-Channel TCRT5000L Infrared Tracking Sensor Module
• Arduino Uno
• Motor Driver Module (L298N or L293D)
• 2 DC Motors
• Chassis, Wheels, Power Supply for the robot

Step 1: Wiring and Connections

1. IR Tracking Sensor Module:

   • VCC to 5V on Arduino.
   • GND to GND on Arduino.
   • OUT1 to OUT5 from the module to Digital Pins 2 to 6 on Arduino for the sensor readings.

2. Motor Driver Module (e.g., L298N):

   • IN1, IN2 (left motor control) to Digital Pins 10 and 11 on Arduino.
   • IN3, IN4 (right motor control) to Digital Pins 12 and 13 on Arduino.
   • ENA and ENB for motor speed control (PWM) can be connected to PWM pins 9 and 8, respectively.

Step 2: Line Following Algorithm

The line-following algorithm will read the sensor data and decide whether the robot should move straight, turn left, or turn right based on the position of the black line.

Logic Breakdown:

• S2 and S3 (Center Sensors): If both detect the black line, the robot moves straight.
• S1 and S2 (Left Sensors): If these detect the line, the robot turns left.
• S4 and S5 (Right Sensors): If these detect the line, the robot turns right.
• If no sensors detect the line, the robot should stop or reverse slightly to re-align.

Step 3: Sample Code

// Sensor pin definitions (connected to Digital Pins 2 to 6 on Arduino)
const int sensorPins[5] = {2, 3, 4, 5, 6};
int sensorValues[5]; // Store sensor values

// Motor control pin definitions (connected to motor driver)
const int motorLeftForward = 10;
const int motorLeftBackward = 11;
const int motorRightForward = 12;
const int motorRightBackward = 13;

// Speed control (PWM pins for motor speed)
const int motorSpeed = 255; // Full speed (adjust for speed control)

// Setup function to initialize pins
void setup() {
  // Initialize sensor pins as input
  for (int i = 0; i < 5; i++) {
    pinMode(sensorPins[i], INPUT);
  }

  // Initialize motor control pins as output
  pinMode(motorLeftForward, OUTPUT);
  pinMode(motorLeftBackward, OUTPUT);
  pinMode(motorRightForward, OUTPUT);
  pinMode(motorRightBackward, OUTPUT);

  Serial.begin(9600); // For debugging sensor values
}

// Main loop
void loop() {
  // Read sensor values
  for (int i = 0; i < 5; i++) {
    sensorValues[i] = digitalRead(sensorPins[i]);
  }

  // Debugging: print sensor values to Serial Monitor
  Serial.print("Sensors: ");
  for (int i = 0; i < 5; i++) {
    Serial.print(sensorValues[i]);
    Serial.print(" ");
  }
  Serial.println();

  // Line-following algorithm
  if (sensorValues[1] == LOW && sensorValues[2] == LOW && sensorValues[3] == LOW) {
    // Center sensors detect the line (move forward)
    moveForward();
  }
  else if (sensorValues[0] == LOW || sensorValues[1] == LOW) {
    // Left sensors detect the line (turn left)
    turnLeft();
  }
  else if (sensorValues[3] == LOW || sensorValues[4] == LOW) {
    // Right sensors detect the line (turn right)
    turnRight();
  }
  else {
    // No line detected (stop or correct)
    stopMoving();
  }

  delay(100); // Short delay for stability
}

// Functions to control motor movement

// Move forward
void moveForward() {
  digitalWrite(motorLeftForward, HIGH);
  digitalWrite(motorLeftBackward, LOW);
  digitalWrite(motorRightForward, HIGH);
  digitalWrite(motorRightBackward, LOW);
}

// Turn left
void turnLeft() {
  digitalWrite(motorLeftForward, LOW); // Stop left motor
  digitalWrite(motorLeftBackward, HIGH);
  digitalWrite(motorRightForward, HIGH); // Move right motor forward
  digitalWrite(motorRightBackward, LOW);
}

// Turn right
void turnRight() {
  digitalWrite(motorLeftForward, HIGH); // Move left motor forward
  digitalWrite(motorLeftBackward, LOW);
  digitalWrite(motorRightForward, LOW); // Stop right motor
  digitalWrite(motorRightBackward, HIGH);
}

// Stop moving
void stopMoving() {
  digitalWrite(motorLeftForward, LOW);
  digitalWrite(motorLeftBackward, LOW);
  digitalWrite(motorRightForward, LOW);
  digitalWrite(motorRightBackward, LOW);
}

Explanation of the Code:

1. Sensor Readings: The values of the 5 sensors are stored in the sensorValues[] array. Each sensor returns either LOW (if the black line is detected) or HIGH (if no line is detected).
2. Line Following Logic:
   • If the center sensors (S2, S3, S4) detect the line, the robot moves forward.
   • If the left sensors (S1, S2) detect the line, the robot turns left.
   • If the right sensors (S4, S5) detect the line, the robot turns right.
3. Motor Control: The movement is controlled by setting the appropriate pins on the motor driver. The moveForward(), turnLeft(), turnRight(), and stopMoving() functions determine the robot's movement.

Step 4: Algorithm Explanation

• The robot uses the sensor data to stay on track:
  • When the line is directly in front of the robot (sensors S2, S3, and S4 detect it), the robot moves forward.
  • If the line drifts left, the left sensors (S1, S2) will detect it, causing the robot to turn left.
  • If the line drifts right, the right sensors (S4, S5) will detect it, causing the robot to turn right.
  • If no sensors detect the line, the robot will stop.

Step 5: Fine-Tuning and Calibration

• Speed Control: You can adjust the motorSpeed value to fine-tune the speed of the robot.
• Sensor Threshold: You might need to tweak the detection logic depending on the track, lighting conditions, and the sensitivity of your sensors.

Improvements:

• PID Control: For more advanced control, you can implement a Proportional-Integral-Derivative (PID) controller to make the robot's movements smoother and more precise.
• Crossroad Detection: You can add logic to handle crossroads or intersections by detecting multiple sensors on the line.

This setup provides a basic foundation for a 5-channel line follower robot using an Arduino Uno.
