With intelligent assistance systems and innovative core algorithms, the Photon Mono M7 Pro from Anycubic is starting a new era in 3D printing. Thanks to the sophisticated combination of advanced machine intelligence and finely tuned processes, the resin printer accompanies you with precise accuracy and outstanding speed throughout your entire printing process.

Technical specifications

Features

Simple, elegant design

The Photon Mono M7 Pro shines in a minimalist OneBox housing design. Its smooth lines underline the geometric appearance, a combination of grey and orange tones attracts all eyes.

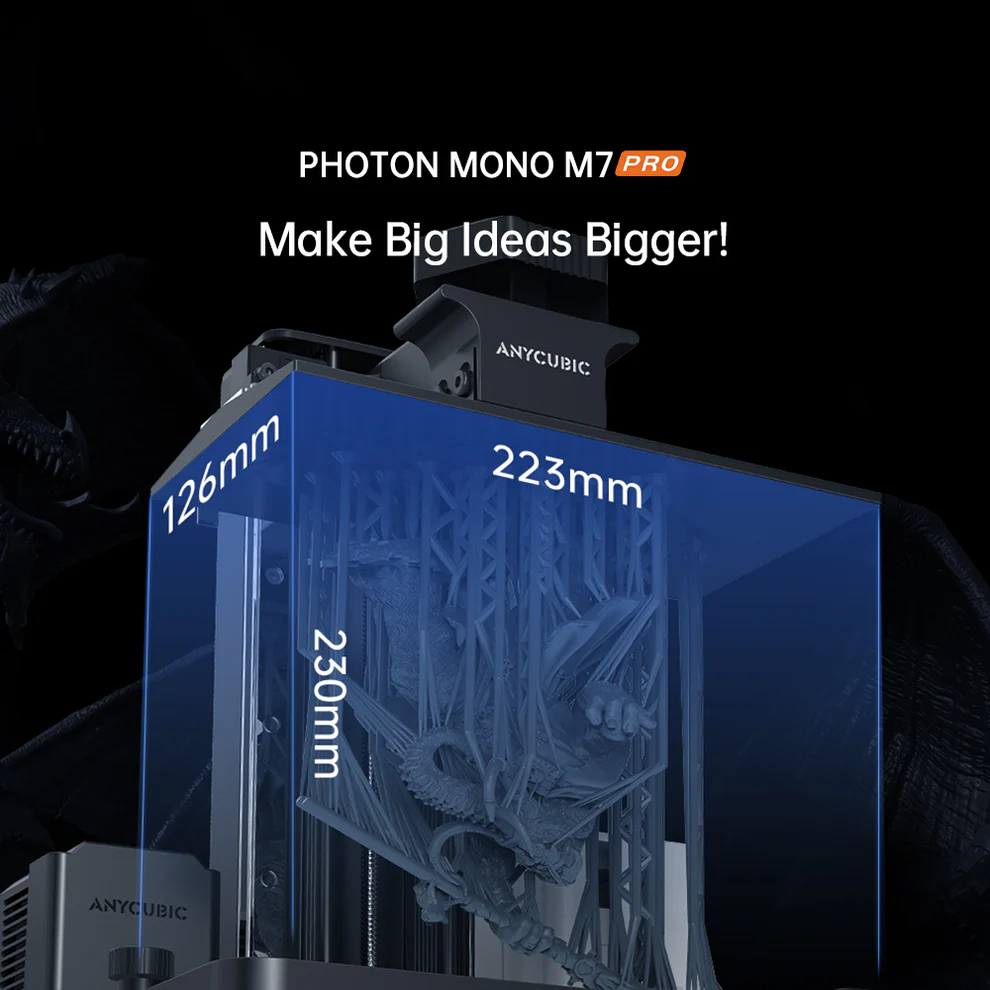

Creativity-promoting build volume

With a build volume of 223 x 126 x 230 mm, you can push the limits of your creativity with ease!

Light Turbo 3.0 lighting system & 14K display

The resin printer uses the new Light Turbo 3.0 light system in combination with a high-resolution 14K screen. The result: an overall better performance of the light source and faster curing of the printed model layers.

The 14K screen has a resolution of 13312 x 5120 pixels and an XY resolution of 16.8 x 24.8 µm. This allows you to print detailed and complex structures with the highest precision and sharpness of detail as well as with a beautiful surface quality.

COB light source with forward-facing reflectors

The Photon Mono M7 Pro uses a new optical design solution consisting of a COB light source with forward-facing reflectors. The technology ensures uniform light intensity within an angle of ≤ 3° and avoids the generation of stray light.

Thanks to a light uniformity algorithm, a light uniformity of ≥ 90%+ and a printing accuracy of ± 0.1-0.05 mm can be achieved. A special light-off algorithm can dynamically adjust the light-off time of the light source under the display according to the exposure area of ​​the printing model as well as the resin flow rate in order to fully expose each individual layer of the model.

Higher speeds to success

By integrating smart algorithms, 10-40% higher printing speeds are ensured. When using a standard resin, speeds of up to 130 mm/h can be achieved, while with high-speed resin the printer can even work at speeds of up to 170 mm/s.

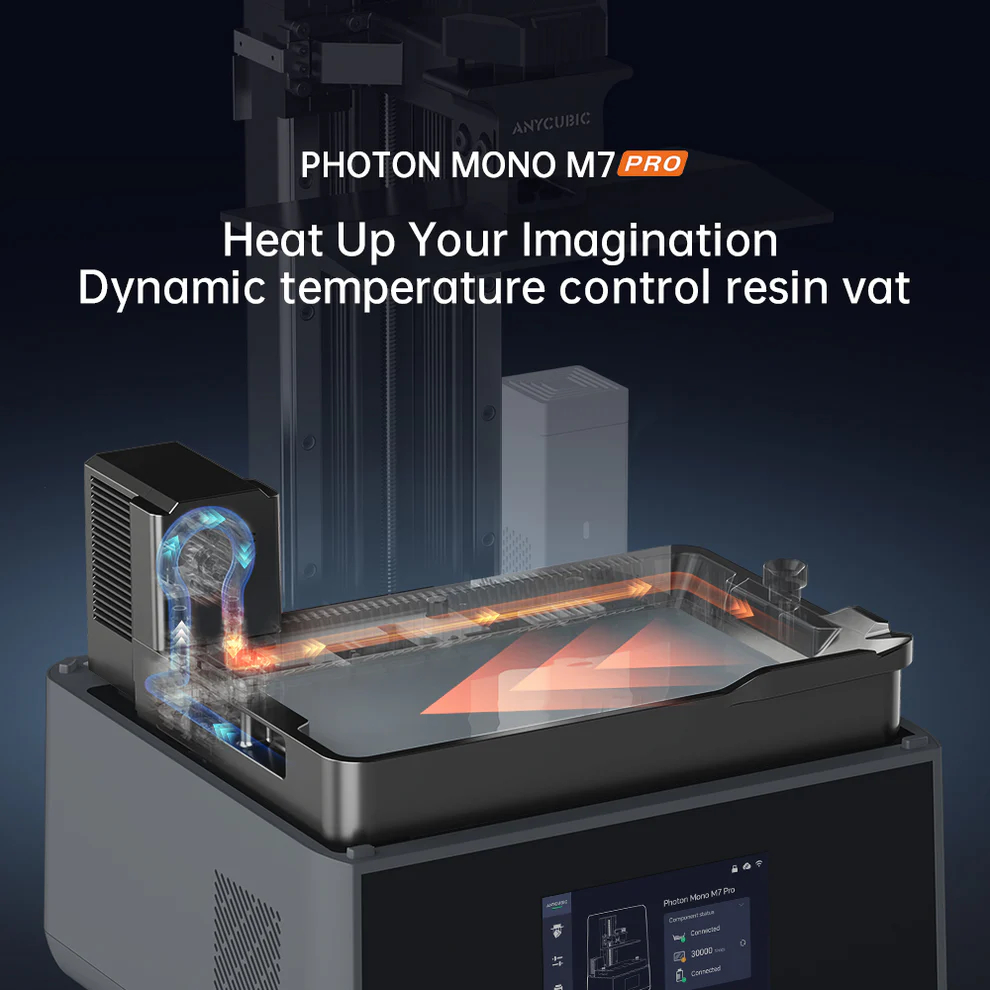

Resin vat with dynamic temperature control

The resin tank with dynamic temperature control has a peristaltic pump and a heater. A special circulation channel ensures that the resin in the tank circulates continuously and is kept at the optimal temperature.

►Depending on requirements, the resin is either heated or cooled, with an optimal temperature of 25 °C being aimed for.

► In circulating motion, the resin needs about 20 minutes to warm up from 5 °C to 25 °C.

The practical thing about the dynamic temperature control: Before printing, the real-time temperature of the resin is measured by an automatic sensor so that it can be adjusted according to the printing requirements. The temperature of the circulating resin is also constantly monitored during the printing process. The adjustable temperature means that a variety of resins with different viscosity levels can be used.

Automatic Resin Management System

In order to simplify the handling of the resin as much as possible, the resin printer has an automatic mechanism for supplying the resin or for pumping it out after printing has finished.

Thanks to the automated device, the printer is continuously supplied with resin during the printing process. The remaining resin is pumped back at the touch of a button after printing is finished or "recycled" for later use. This saves you time-consuming cleaning and of course, saves you money!

Included AirPure air purifier

The Anycubic AirPure air purifier has a built-in, easily replaceable activated carbon filter that can effectively absorb and filter up to 99% of VOCs as well as unpleasant resin odours.

Automatic levelling

The resin printer is ready to use Sense. The device is automatically and precisely levelled to “zero”, eliminating the need for manual levelling.

Intelligent assistance systems

With intelligent assistance systems, you are well-prepared for each of your 3D printing projects:

► Failed Print Detection:

If errors are detected, the 3D printer stops the printing process and informs you about possible damage to the model. This allows you to intervene as quickly as possible and save your prints in time.

► Release Film Lifespan Management:

This function counts how often the release film has been used. After around 45,000 uses, you will be reminded to replace the film soon.

► Resin Residue Detection:

Thanks to a mechanical algorithm, resin residues in the resin tank are automatically detected to prevent the display from breaking.

► Resin Level Detection:

Before printing begins, the system automatically checks whether the amount of resin in the container meets the printing requirements. If this is not the case, you will be reminded to refill the container with resin.

► Platform Installation Status Detection:

This function checks the status of the build platform. If there are any abnormalities, you will be informed in a timely manner.

► Component Connection Status Detection:

The printer automatically performs a quick self-test to ensure that its individual components are functioning properly.

Simplified slicing process

With the Photon Mono M7 Pro, even slicing is a lot of fun:

• The slicer supports slicing models and saving draft files anytime, anywhere.
• Thanks to a special algorithm (vector slicing), a sliced ​​model file is compressed so that it does not take up too much storage space on the device when the model is transferred.
• With the built-in multi-task management, you can track the printing status of multiple printers in real-time and manage them as needed.
• An auto repair function shows you which defects and how many there are in your model file and repairs them automatically so that you can complete your printing process with complete success.

Makeronline Community

Explore the imagination of other 3D printing enthusiasts, share your creations with the community and take part in exciting competitions or prize draws.

Additional features:

• Easy-to-use, ergonomic, touch-sensitive 5-inch touch display;
• For efficient heat dissipation and stable operation, strong cooling grills are distributed on several sides of the base.

Package Included:

• 1 x Photon Mono M7 Pro
• 1 x Build platform
• 1 x Resin vat
• 1x User Manual
• 1 x Screen Protector Kit
• 1 x Levelling paper
• 1 x Auto-fill unit
• 1 x Air Purifier
• 1 x Protective equipment
• 5 x Funnel
• 2 x Scrapers
• 1 x Hex key set
• 1 x USB drive
• 1 x WiFi antenna
• 1 x Power cable
