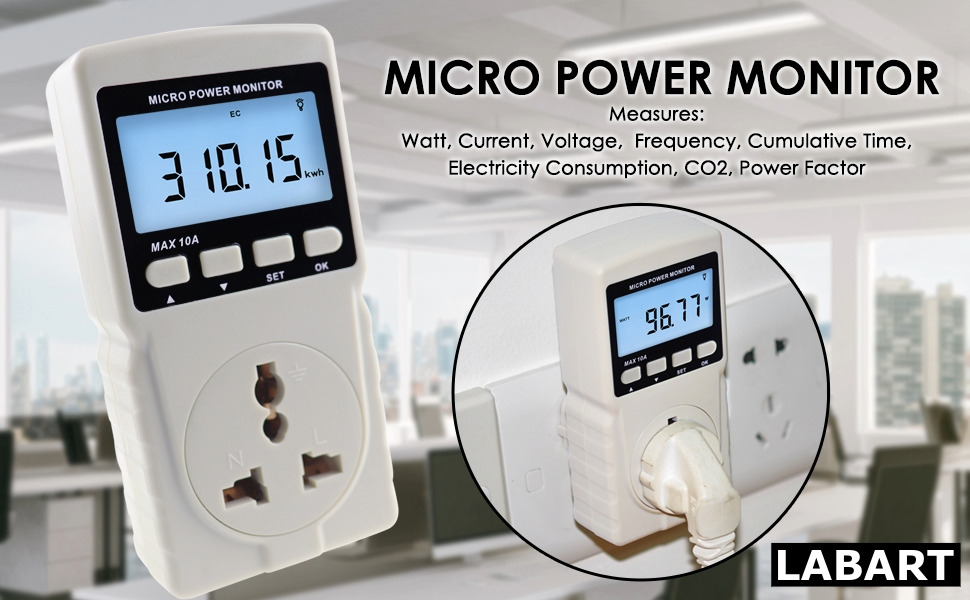

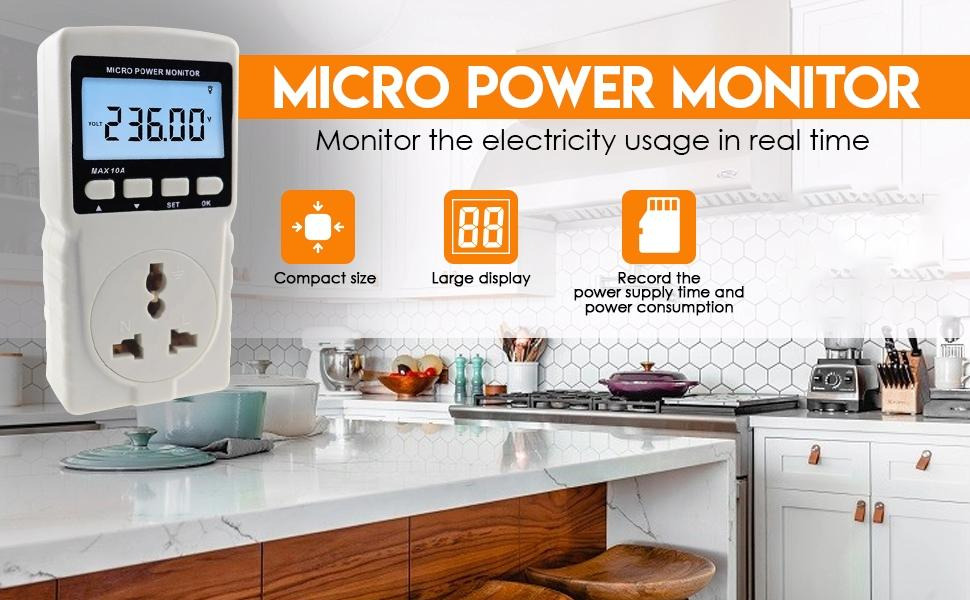

The GM86 Digital Power Meter is a plug-in electricity usage monitor designed to measure and track energy consumption in real-time. It helps users monitor power usage, calculate costs, and optimize energy efficiency by displaying key electrical parameters such as watts, volts, current, frequency, and power factor. This device is suitable for home appliances, office equipment, and industrial applications.

Features:

• Accurate Energy Monitoring – Displays power consumption in watts, kilowatt-hours (kWh), voltage, current, and frequency.
• Cost-Saving Tool – Helps identify high-energy-consuming devices to reduce electricity costs.
• Real-Time Display – Large LCD screen provides clear readings of various electrical parameters.
• Multi-Function Measurement – Tracks energy usage over time, including minute-by-minute power consumption.
• CO₂ Emission Monitoring – Estimates carbon footprint based on power consumption.
• Backlight Function – Adjustable ON/OFF backlight for better visibility.
• Plug-and-Play Design – Easy to use, simply plug into a standard power outlet.
• Compact and Lightweight – Small form factor ensures it does not block adjacent sockets.

Specifications:

• Model: GM-86
• Applicable Power Supply: 220V, 50Hz
• Working Voltage Range: 180V ~ 260V
• Maximum Rated Current: 10A
• Maximum Power: 2200W
• Measurable Power Range: 0.2W ~ 2200W
• Maximum Accumulated Energy Consumption: 99,999 kWh
• Maximum Accumulated Time: 99,999 minutes
• Power Factor Range: 0.001 - 1.000
• Backlight Function: ON/OFF can be set
• Precision: Level 1.0
• Energy Measurement Constant: 6400 imp/kWh
• Power Dissipation: <1W
• Working Temperature: 0°C ~ 45°C
• Storage Temperature: -20°C ~ 60°C
• Product Dimensions: 60.0 × 55.7 × 120 mm
• Weight: 129.6 g
• Included Components: Micro Power Monitor, User Manual

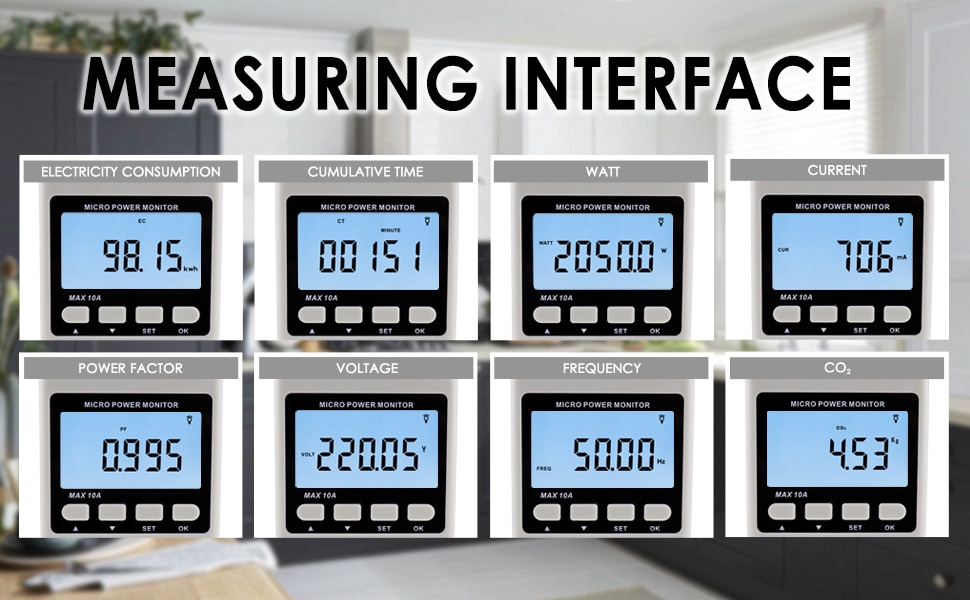

• Measured Parameters:
  • Energy Usage (kWh)
  • Time (Minutes)
  • Power (Watt)
  • Current (mA)
  • Voltage (Volt)
  • Frequency (Hertz)
  • Power Factor
  • CO₂ Emission Estimate

Applications:

• Monitoring home appliance energy consumption
• Identifying high-energy-consuming devices
• Reducing electricity costs in homes and offices
• Tracking power usage trends for energy efficiency
• Industrial and commercial power monitoring
