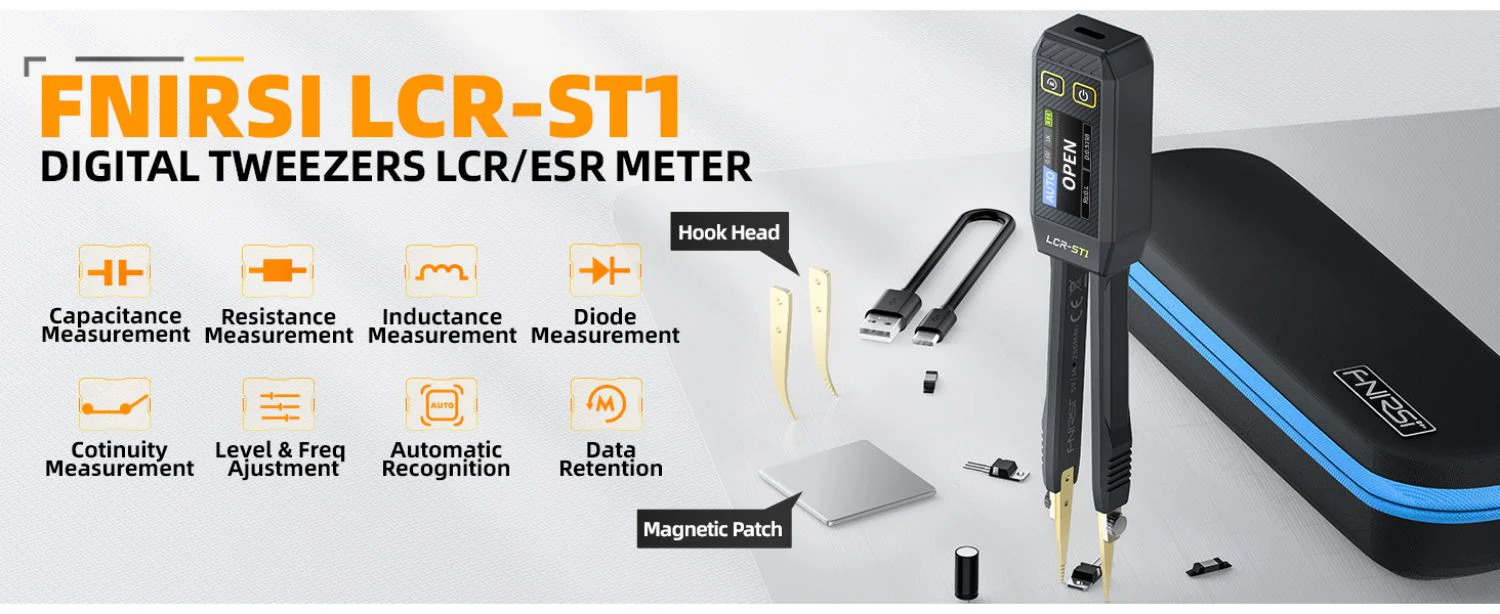

The FNIRSI® LCR-ST1 is a compact, multi-functional tweezer-style testing instrument designed for professionals and hobbyists working with electronic components. This portable LCR tester supports precise automatic measurements of resistance, capacitance, inductance, diodes, and continuity. With advanced measurement technology, it ensures accuracy and reliability, making it ideal for on-site engineers and laboratory use.

Features:

• Multi-Functional Testing: Measures resistance, capacitance, inductance, diodes, and continuity.
• High Accuracy and Stability: Advanced measurement technology for reliable results.
• Clear Display: 1.14" color screen for easy data visualization.
• Frequency Options: Supports 100Hz, 1kHz, and 10kHz with test levels of 0.3V and 0.6V RMS.
• Portable Design: Lightweight and tweezer-shaped, perfect for narrow spaces and fine operations.
• Magnetic Adsorption: Enhances convenience for everyday use.
• Long Battery Life: Built-in 250mAh lithium battery with Type-C charging.
• Data Management: Supports history records and PC connection for exporting data.
• User-Friendly: Auto recognition measurement, replaceable tweezer head, and auto-shutdown for energy efficiency.

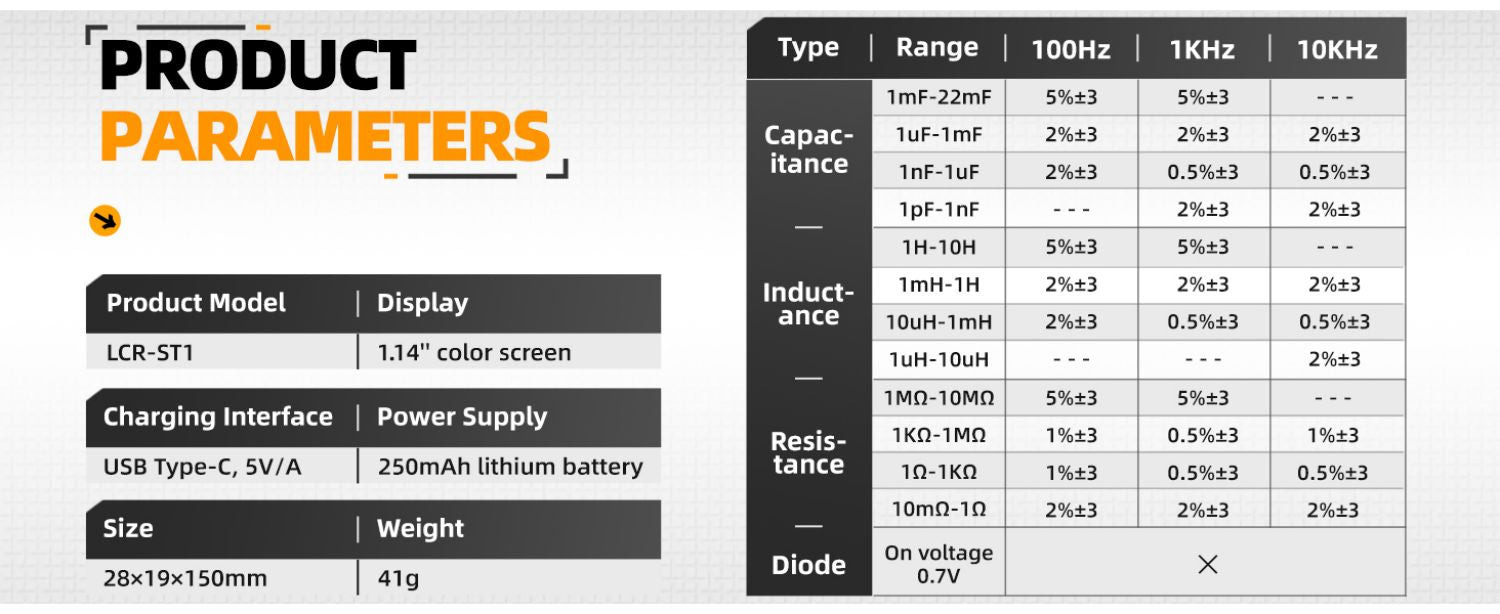

Specifications:

• Brand: FNIRSI
• Model: LCR-ST1

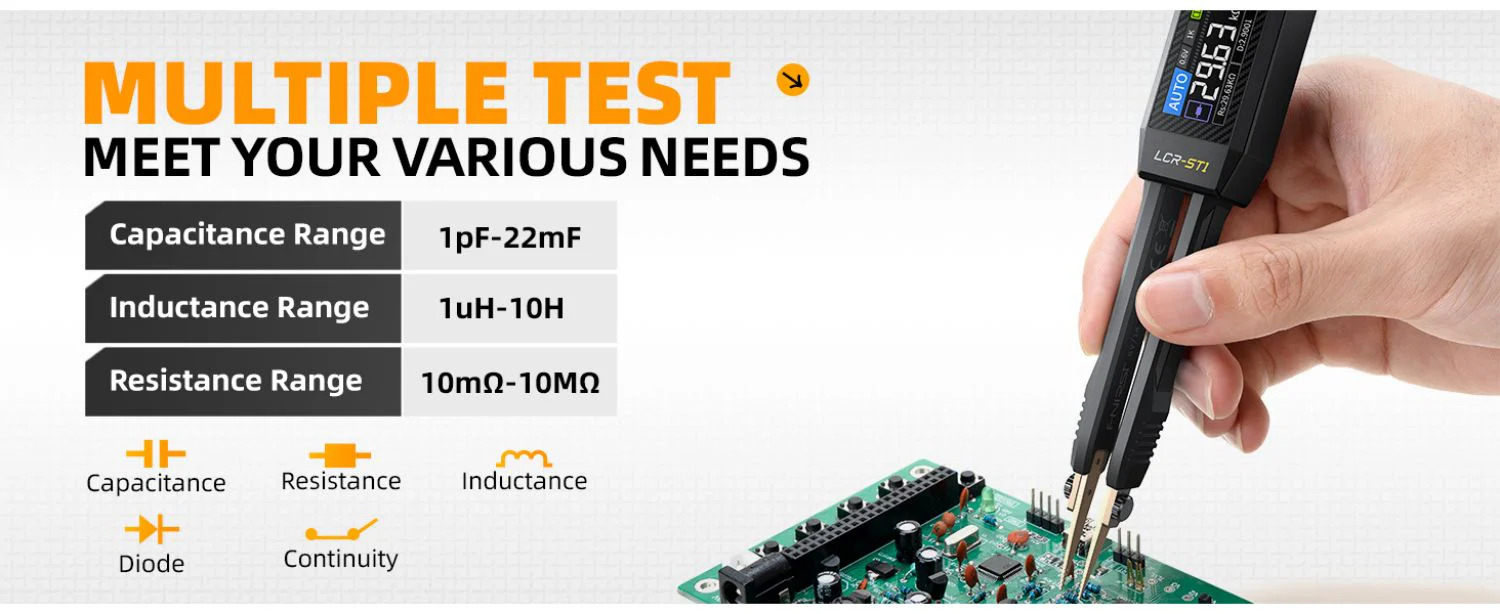

• Capacitance Range: 1pF - 22mF
• Inductance Range: 1μH - 10H
• Resistance Range: 10mΩ - 10MΩ
• Diode Test: On voltage 0.7V
• Frequency Test: 100Hz, 1kHz, 10kHz
• Level Test: 0.3V, 0.6V RMS

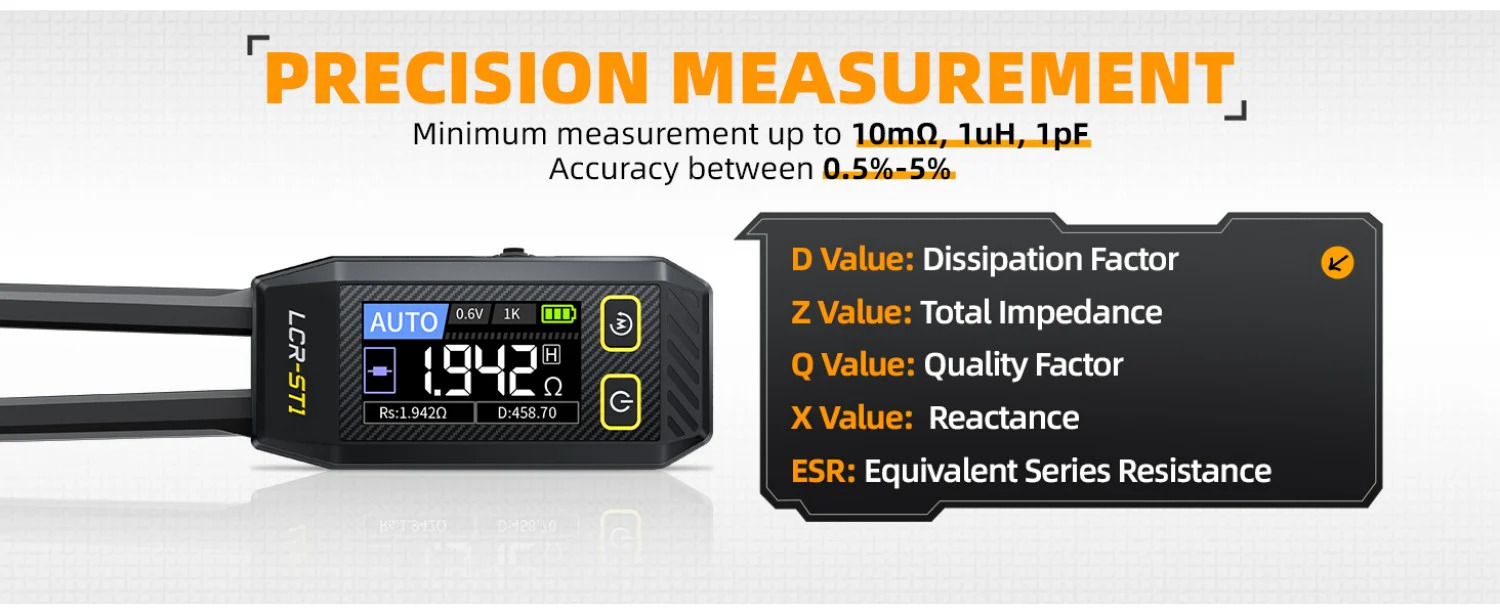

• Parameter Display: ESR, D value, Q value, Z value, X value
• Display: 1.14" color screen
• Charging Interface: Type-C, 5V/1A
• Power Supply: Built-in 250mAh lithium battery
• Auto Recognition Measurement: Supported

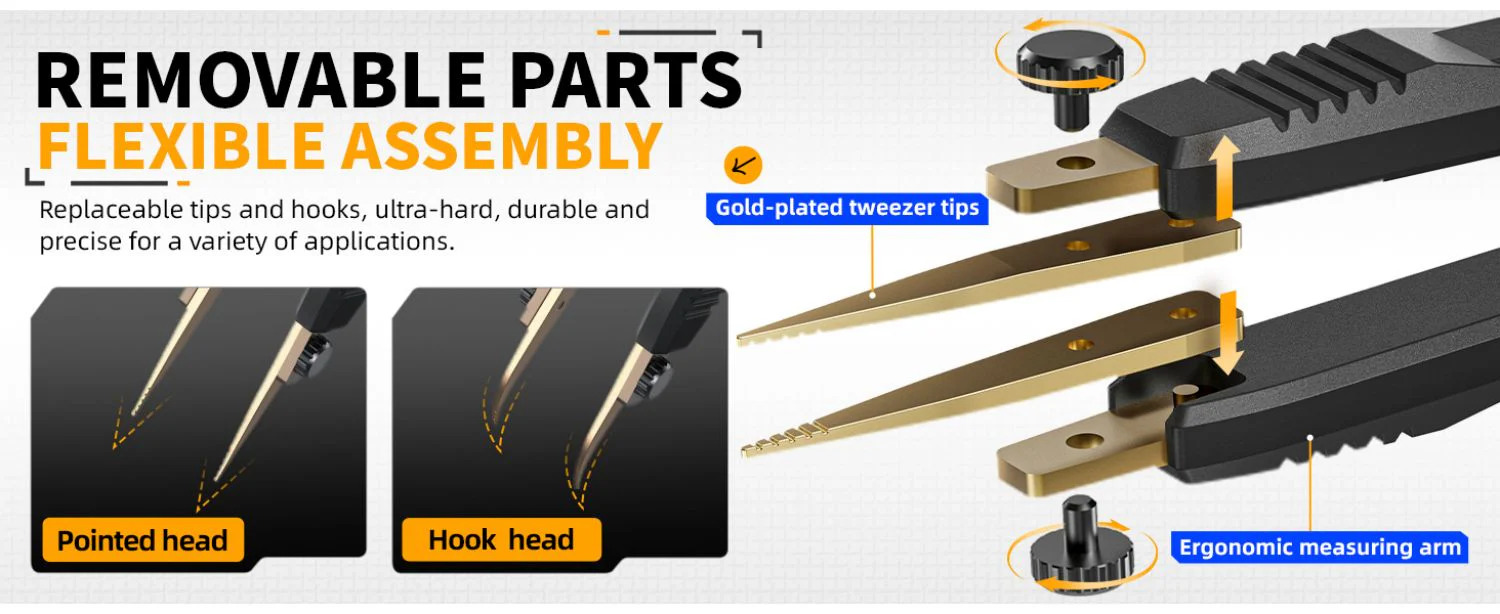

• Replaceable Tweezer Head: Supported
• Auto Shutdown: Supported
• Data Hold: Supported
• History Record: Connect to PC to view/export
• Language Options: English, Chinese
• Size: 28 x 19 x 150mm
• Weight: 41g
