High Quality PWM Solar Charge Controller 12V/24V 30A for Lead Acid Lithium Battery SRNE HC2430
In stock
Order before 12.00PM
Customer Reviews

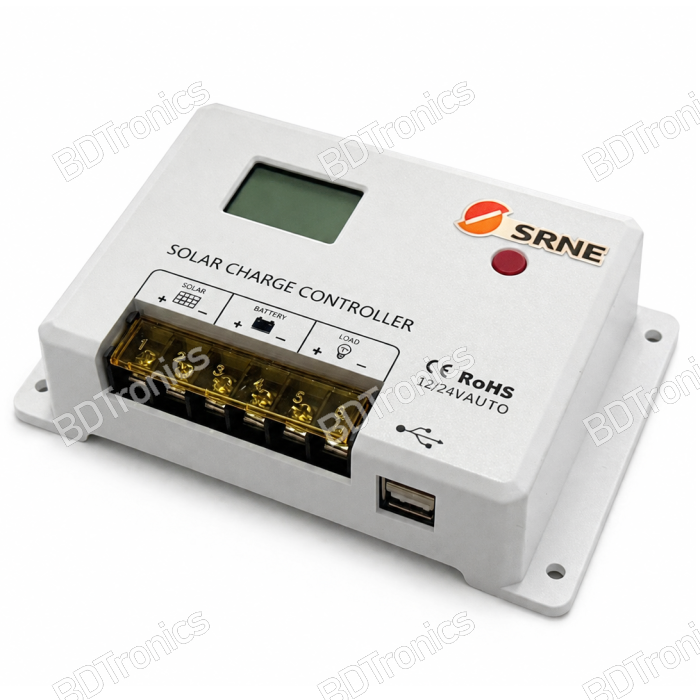

SRNE brand 12V/24V auto 30A all-in-one PWM charge controller
Features:
- 32-bit high-speed master control chip.
- Large-screen LCD for display, charge and discharge parameters adjustable , Allow selection of multiple batter y types, with a flexibility to set the load to work during the day or night..
- Complete multi-stage PWM charge management.
- Built-in reverse connection protection, open-circuit protection, high temperature
protection, over-current/short-circuit protection (optional), which are all self-recovery type, with no damage to the controller. - Double MOS anti-backflow circuit, ultra-low heat generation.
- Lithium batter y activation available.
- Dual USB output, maximum current up to 2A, supporting high current charging of Iphone, Ipad and Android mobile phones and other devices
Specifications:
- Model: SRNE HC2430
- System voltage: 12V/24V
- Rated Current: 30A
- Maximum PV Input voltage: 50V
- Charging mode: PWM/ Intermittent charging mode
- Supported battery types: Lead Acid, Lilthium Batteries
- USB Output: 5V 2A
- No load power consumption: ≤10mA
- Operating Temperature: -35~+60°C
- Altitude: ≤3000m
- IP rating: IP32
- Product size: 159*100*39mm
- Installation size: 147*80mm
- Weight: 290g
Comparison Table:
| Model | 10A Controller | 20A Controller | 30A Controller | 40A Controller | 60A Controller |
| Charging Mode | PWM | ||||
| System Voltage | 12V/24VDC | 12V/24VDC | 12V/24VDC | 12V/24VDC | 12V/24VDC |
| Rated Charging Current | 10A | 20A | 30A | 40A | 60A |
| Rated Load Current | 10A | 20A | 30A | 40A | 60A |
| Max PV Input Power | 150W/12V, 300W/24V | 300W/12V, 600W/24V | 450W/12V, 900W/24V | 600W/12V, 1200W/24V | 900W/12V, 1800W/24V |
| Max PV Input Voltage | 55VDC | ||||
| USB Output | 5V/2A | ||||
| Protection Grade | IP32 | ||||
| Operating Temperature | -35~60ºC | -35~60ºC | -35~60ºC | -35~60ºC | -35~60ºC |
| Product Size | 120x75x34mm | 134x85x36mm | 159x100x39mm | 159x100x39mm | 193x131x55.2mm |
| Weight | 0.13kg | 0.18kg | 0.29kg | 0.322kg | 0.66kg |
