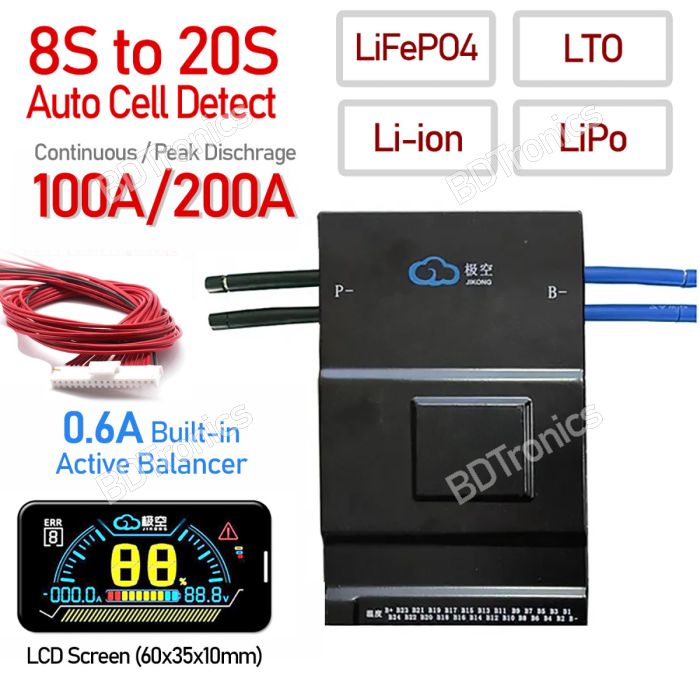

JK 100A - 300A Universal and Smart BMS with built-in Active Balancer

The intelligent protection board of lithium battery is a management system specially designed for large-capacity series lithium battery packs. which has the functions of charging, high current active balance, protections such as overcharge, over discharge, over current and over temperature protection, coulomb counter, Bluetooth communication, GPS remote, etc.

The protection board can also connected Android and IOS mobile apps via Bluetooth to monitor the battery health and working status. Also, you can modify charge/discharge/balance parameters of the protection board.

The protection panel is compact, easy to operate which can be widely used in EV, scooter, shared car, high-power energy storage, base station standby power supply, solar power, and other projects.

Features:

• Supported battery types:
  • Lithium Iron Phosphate (LiFePO4/ LFP)
  • Lithium Titanate (LTO)
  • Lithium Ion (Li-ion)
  • Lithium Polymer (LiPO)
• Supported number of cells:
  • LiFePO4: 8S ~ 20S
  • LTO: 14S ~ 20S

  • Li-ion/ LiPO: 7S ~ 20S

• Bluetooth Supports: Android and iOS
• Single cell can charge range from 1V ~ 5V. (Configurable depending on cell type LFP/ LTO/ Li-ion/ LiPo etc.)
• This smart BMS works with any number of battery cells from 8S to 20S, supports charge and active balance.
• This BMS provides balancing accuracy ± 5mv.
• Supports Bluetooth, CAN and RS485 protocol to communicate with Solar Inverters for remote monitoring
• Configure the charge/ discharge/ balance voltage and current via Bluetooth.
• Active balancer technology using the non-energy consumption energy transfer technology
• When the voltage difference reach the threshold value (default > 4MV, can be set), it will be automatically start the balancing process
• BMS can support 8 - 20S battery cells and select the cell count automatically. So, a single BMS can suppports wide range of battery packs.
• It has various protection functions: Over-charge, Over-discharge, Coulomb meter, Temperature protection
• Multiple BMS can be balanced in Cascade Mode.
• The charge range of single battery is 1V ~ 5V, and the accuracy is ± 5mv
• Bluetooth communication is standard and supports Android and IOS to
  monitor the battery status in real time
• Configure the charge/discharge/balance paramter by Bluetooth
• Overall dimension: 153mm * 136mm * 17.6mm

Specifications:

• Li-ion Cell Support: 7~20S
• LiFePO4 Cell Support: 8~20S
• LTO Cell Support: 12~20S
• Bluetooth Supports: Android and iOS
• BMS Size: 162x102x20.4mm
• Balance Method: Built-in Active Balancer
• Balance Current: 0.6A
• BMS Internal Circuit Resistance: 1.3 milliOhm
• Continous Discharge Current: 100A
• Maximum Discharge Current: 200A
• Over Protection Current: 10-100A (Adjustable)
• Over Discharge Protection Voltage: 1.2 - 4.35V per cell (Adjustable)
• Power Output: Same port
• Single Cell Voltage Range: 1- 5V
• Voltage accuracy: ±3mV
• Over charge protection voltage: 1.2V-4.35V (adjustable)
• Over charge protection release: 1.2V-4.55V (adjustable)
• Over current protection release time: 2S-120S (adjustable)
• Over discharge protection voltage: 1.2V-4.35V (adjustable)
• Over discharge protection release: 1.2V-4.35V (adjustable)
• Short Circuit Protection: Yes
• Temperature Protection: Yes
• Coloumb Counter: Yes
• Bluetooth Functions: Yes
• Bluetooth Functions: Supports Android and iOS
• Temperature Sensor: 3 Points
• CAN/ RS485 Connectivity: Optional
• GPS: Optional (connects via RS485)
