Functinalities:

• Four charging current modes: 500mA * 4 / 700mA * 4 / 1000mA * 4 / 2000mA * 2
• Two discharging current modes: 250 mA * 4/500 mA * 4
• 4. Different batteries of different specifications can be used (18650/26650 21700/ AA / AAA);
• This product uses a separate LCD display, charging and discharging (mode). Voltage (V).
• Current (mA). Time (h). The capacitance (mAh) parameters are clear at a glance
• CHARGE, DISCHARGE and TEST modes can work simultaneously; independent setting
• Charge and discharge capacity detection / normal capacity detection function
• Protection functions: overcharge and over-discharge, short circuit, temperature, 0V voltage activation function, (-ΔV&0ΔV), 1.65V-2.2V no charging function, intelligent identification, insufficient battery and reverse battery detection protection.
• USB output function: Standard 5V / 1000mA function (only valid when connected to AC power)

Technical parameters:

• Input voltage: DC 12 V / 3.0A
• Output voltage: DC 4.2 V / DC 1.48 V.
• Output current:
  • Lithium battery charging current: 500mA * 4 / 700mA * 4 / 1000mA * 4 2000mA * 2
  • NiMH battery charging current: 500mA * 4 / 700mA * 4 / 1000mA * 4

NOR TEST (normal capacity detection mode):

• 4-channel independent fast detection, regardless of lithium ion/NiMH battery.
• Enter NOR TEST----Charging batteries---- Battery discharge----Full again/End
• Fill the battery first, then discharge the battery and record the discharge capacity to detect the battery capacity, then fully charge the battery.

FAST TEST (fast capacity detection mode):

• 4-channel independent fast detection, regardless of lithium ion/NiMH battery.
• Enter FAST TEST----Battery discharge---- Charging batteries---- Full again/End
• Is to discharge the battery first, then fill the battery and record the charge, so as to detect the battery capacity;
• The charging current is 300mA/500mA, and the discharge current defaults to 250mA;
• The charging current is 700mA/1000mA, and the discharge current defaults to 500mA;

Specifications:

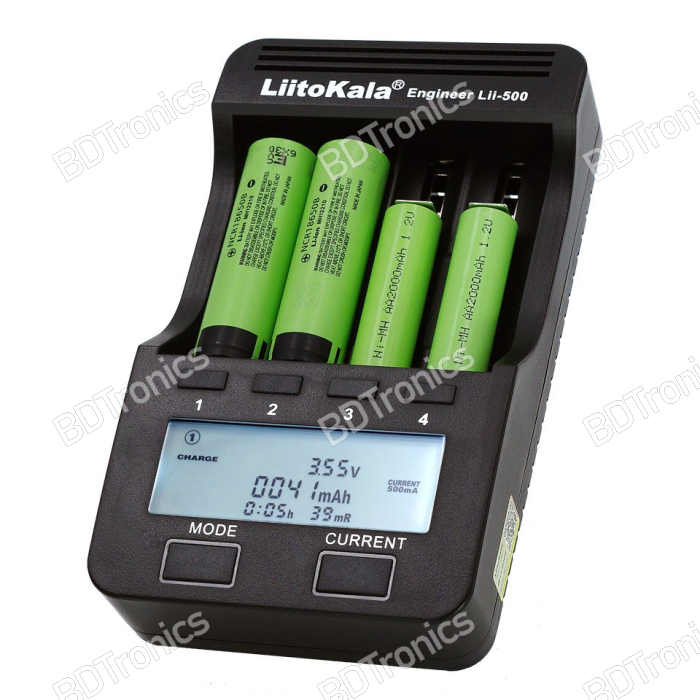

• Battery specifications: 26650, 21700, 18650, 18350, 20650, 14500, AA, AAA, etc.
• Discharge current: 250 mA / 500 mA
• USB output: 5 V --- 1000mA
• Termination method: intelligent voltage monitoring
• Dimensions: 162 mm (length) * 100 mm (width) * 36 mm (height).

Package Includes:

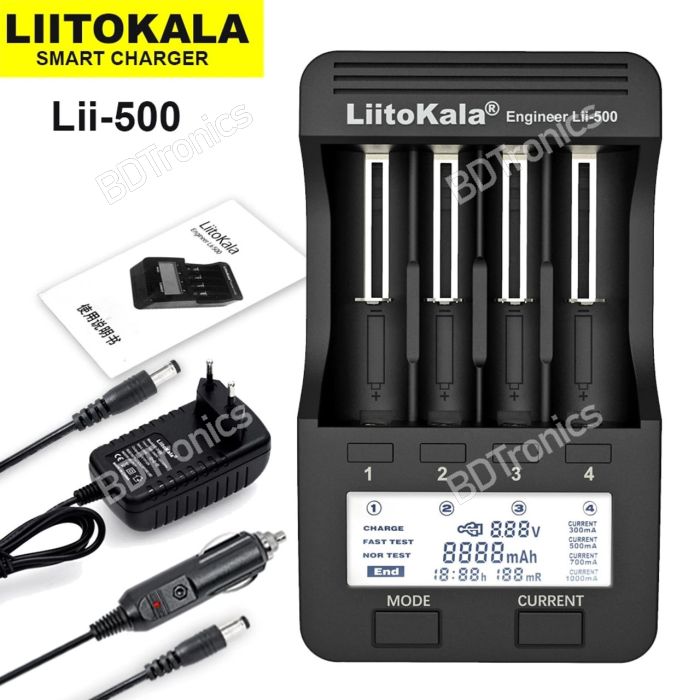

• 1 x Liitokala Lii-500 charger
• 1 x User Manual
