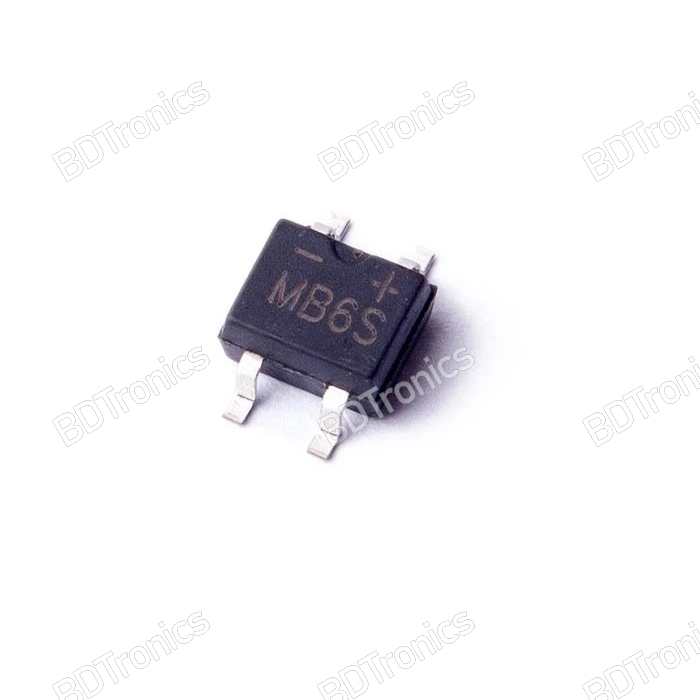

MB6S SMD Bridge Rectifier Surface Mount Diode
In stock
Order before 12.00PM
The MB6S is a SMD (Surface-Mount Device) Bridge Rectifier in a compact SOP-4 (Small Outline Package) form factor. It is designed for efficient AC-to-DC rectification, converting alternating current (AC) into direct current (DC) in low to medium-power applications. The MB6S features four diodes arranged in a bridge configuration, which allows it to handle both positive and negative AC input, making it ideal for power supply circuits, battery charging systems, and other applications where efficient rectification is necessary.
The SOP-4 Foot Chip packaging ensures that the MB6S is easy to integrate into modern PCB designs, and its small size saves space on the board, making it well-suited for compact devices.
Features:
- Bridge Rectifier Configuration: Contains four diodes in a bridge arrangement for AC-to-DC conversion.
- SOP-4 Foot Chip Package: Ideal for surface-mount applications with a small form factor.
- High Reverse Voltage Rating: Capable of withstanding up to 600V reverse voltage.
- Current Handling: Supports up to 800mA continuous forward current.
- Low Forward Voltage Drop: Ensures efficient power conversion by minimizing losses.
- Fast Switching: Allows for rapid rectification with low reverse recovery time.
- RoHS Compliant: Environmentally friendly and lead-free construction.
Specifications:
Parameter | Value |
---|---|
Part Number | MB6S |
Package Type | SOP-4 Foot Chip |
Reverse Voltage Rating | 600V |
Forward Current Rating | 800mA |
Forward Voltage Drop (Vf) | 1.1V max at 800mA |
Peak Forward Surge Current | 1A |
Reverse Recovery Time (trr) | 50ns max (typical) |
Operating Temperature Range | -40°C to +125°C |
Thermal Resistance (Junction to Ambient) | 60°C/W |
Mounting Type | Surface-Mount (SMD) |
Package Dimensions (SOP-4) | 5.0mm x 6.0mm (typical for SOP-4 package) |
Compliance | RoHS Compliant, Halogen-Free |
Applications:
- AC to DC Conversion: Commonly used in power supplies, inverters, and charging circuits to convert AC input into DC output.
- Power Supply Circuits: Converts AC mains voltage to a DC voltage for powering low- to medium-power electronics.
- Battery Charging: Rectifies AC output to charge batteries efficiently.
- LED Drivers: Used in LED power supplies that require rectified DC.
- Automotive: Can be used in vehicle power supply systems where rectification from AC to DC is needed.
- Home Appliances: Found in small household appliances requiring power rectification.
