Features:

• Brand new touch control function;
• Four slots work independently;
• It has two working modes: automatic AUTO and manual MANUAL; (the system defaults to automatic AUTO, which automatically distributes current)
• Various optional charging currents: 250mA/500mA/1000mA/1500mA/2000mA/2500mA/3000mA;
• Three-stage discharge current: 250mA/500mA/750mA;
• It can charge rechargeable batteries of different specifications (18650/26650.../AA/AAA) at the same time;
• This product adopts an independent LCD display, including battery type (Li-ion-3.7V, Ni-MH1.2V), working mode (AUTO/MANUAL), battery channel (CH1-CH4), working mode (CHARGE charging mode/DISCHARGE discharging mode/TEST detection mode/REPAIR repair mode), charge and discharge capacity (mAh), charge and discharge time (h), charge and discharge current (mA), battery voltage (V), battery percentage %, Parameters such as Battery Internal Resistance (mΩ), Temperature, etc. are detailed and clear at a glance;
• In CHARGE mode, 4 channels work independently, each channel can choose different charging current and detect charging capacity;
• In DISCHARGE mode, 4 channels work independently, each channel can choose different discharge current and detect discharge capacity;
• In TEST mode, the normal battery capacity detection process includes three steps (1 charge, 2 discharge, 3 recharge) to detect the battery capacity process;
• Different channels can work in different modes (CHARGE, DISCHARGE and TEST, REPAIR); independently set charging/discharging capacity detection/normal capacity detection functions;
• Multiple protection functions: overcharge and overdischarge, short circuit, temperature, 0V voltage activation function, (-ΔV&0ΔV), 1.65V-2.2V can not charge function, intelligent identification of bad batteries and reverse battery detection protection.

Technical Parameters:

• Input voltage: DC 12V/5A
• Output voltage:DC 4.2V / DC 1.48V
• Output current:Lithium battery charging current: (250mA / 500mA /1000mA/ 1500mA / 2000mA / 3000mA)*4
• NiMH battery charging current: (250mA / 500mA /1000mA)*4
• Discharge current: 250mA / 500mA /750mA
• Rechargeable battery specifications: 26650,21700,18650,18350, 20650,14500, AA, AAA, etc.
• Temperature Sensor
• Termination method: intelligent voltage monitoring
• Battery Internal Resistence Detection
• Battery Repair Functionality
• Battery Test Functionality
• Battery/Charge Discharge Mode
• Dimensions: 165mm (length) * 115mm (width) * 40mm (height).

Package Includes:

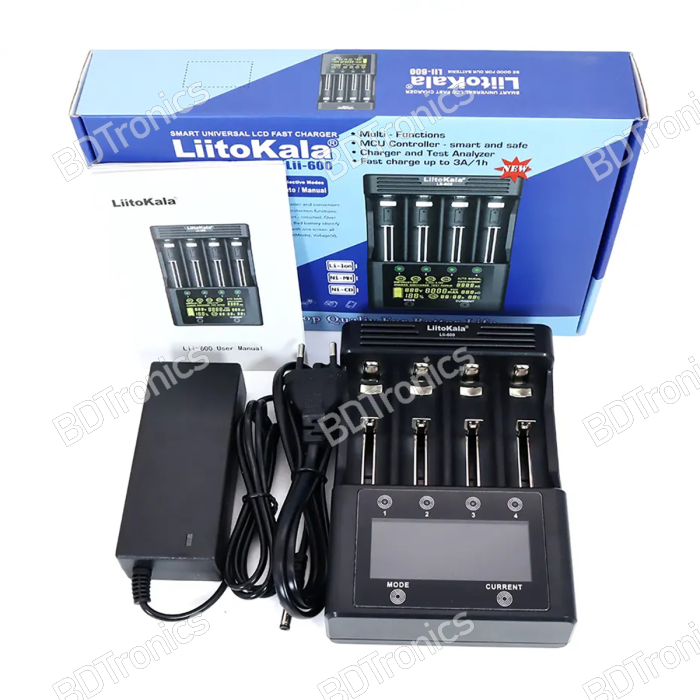

• 1 x Liitokala Lii-600 charge
• 1 x Adapter
• 1 x User Manual
