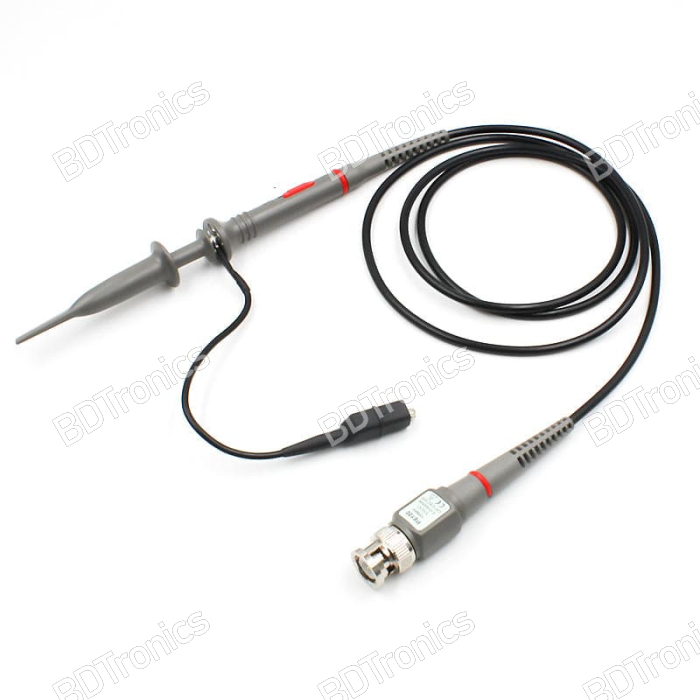

The P6100 Oscilloscope Probe is a high-quality probe designed for accurate and reliable signal measurements across a wide range of frequencies. With a bandwidth selection of DC-6MHz or DC-100MHz and an adjustable attenuation ratio of 1:10, this probe is well-suited for various testing environments and electronics work. Its input resistance and capacitance options ensure compatibility with different devices, while its compensation range allows for fine-tuning to match system requirements. The probe is built for durability, handling working voltages up to 600V in the 10X setting and operating within a wide temperature range, making it ideal for both laboratory and field applications. The compact design and lightweight construction provide comfort during prolonged use.

Features:

• Bandwidth: DC-6MHz / DC-100MHz
• Attenuation Ratio: 1:10
• Input Resistance: 1MΩ : 10MΩ
• Input Capacitance: 1X: 85pF-120pF, 10X: 18.5pF-22.5pF
• Compensation Range: 10pF-30pF
• Rise Time: <3.5ns
• Working Voltage:
  • 1X: <200V DC + AC Peak
  • 10X: <600V DC + AC Peak
• Cable Length: 120cm
• Temperature:
  • Operating: -10℃ to +50℃
  • Non-operating: -20℃ to +75℃
• Humidity: ≤5% (relative humidity)

Specifications:

• Cable Length: 120cm
• Weight: 80g
• Color: Grey + Black

Package Includes:

• 1 x P6100 Oscilloscope Probe
