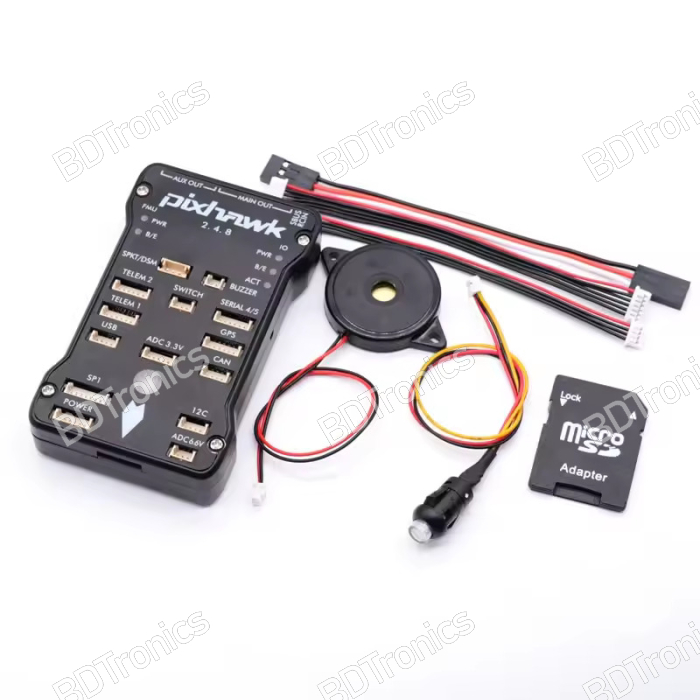

The Pixhawk PX4 2.4.8 Drone Flight Controller Autopilot Kit is a popular open-source flight controller system used in a variety of drones, including quadcopters, fixed-wing aircraft, and other UAVs. It is ideal for hobbyists, researchers, and professionals looking for a reliable, feature-rich autopilot solution.

Key Features:

• Open-source platform: Supports both PX4 and ArduPilot firmware, offering flexibility and customization options.
• High-performance processor: Powered by a 32-bit STM32F427 Cortex-M4 processor with floating-point unit, ensuring smooth and precise flight control.
• Integrated sensors:
  • 3-axis gyroscope, accelerometer, and magnetometer.
  • Barometer for altitude measurement.
  • External GPS module for accurate positioning.
• Power management: Integrated power module for voltage and current monitoring with automatic fail-safe features.
• Multiple I/O options: Supports various peripherals, including GPS, telemetry, external compass, and other accessories.
• Redundant power supply: Ensures stable operation even if one power source fails.

Specifications:

• Processor

  • 32-bit ARM Cortex M4 core with FPU

  • 168 Mhz/256 KB RAM/2 MB Flash

  • 32-bit failsafe co-processor

• Sensors

  • MPU6000 as main accel and gyro

  • ST Micro 16-bit gyroscope

  • ST Micro 14-bit accelerometer/compass (magnetometer)

  • MEAS barometer

• Power

  • Ideal diode controller with automatic failover

  • Servo rail high-power (7 V) and high-current ready

  • All peripheral outputs over-current protected, all inputs ESD protected

• Interfaces

  • 5x UART serial ports, 1 high-power capable, 2 with HW flow control

  • Spektrum DSM/DSM2/DSM-X Satellite input

  • Futaba S.BUS input (output not yet implemented)

  • PPM sum signal

  • RSSI (PWM or voltage) input

  • I2C, SPI, 2x CAN, USB

  • 3.3V and 6.6V ADC inputs

• Dimensions

  • Weight 38 g (1.3 oz)

  • Width 50 mm (2.0”)

  • Height 15.5 mm (.6”)
