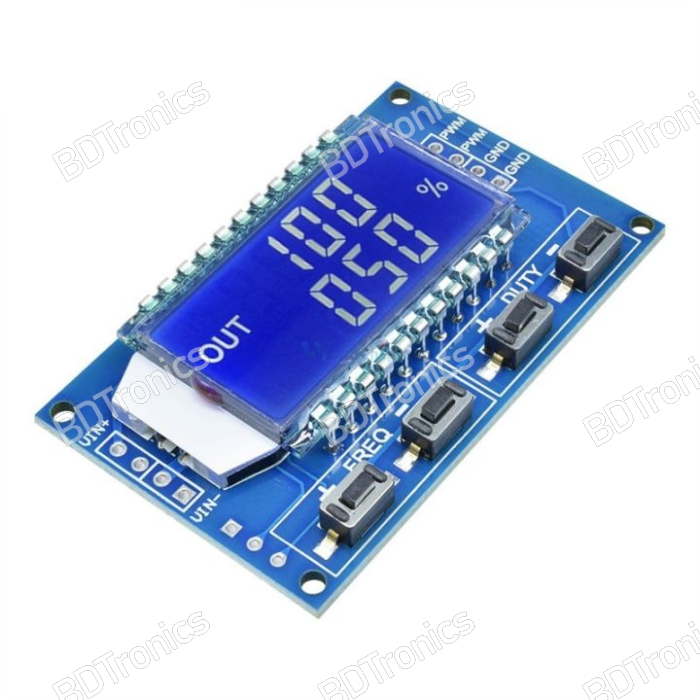

The XY-LPWM Signal Generator Module is a versatile PWM (Pulse Width Modulation) signal generator designed for various applications in controlling motor speed, light intensity, and other devices. This module features an adjustable frequency and duty cycle, which are displayed on a bright LCD screen for easy monitoring and control. It can operate within a wide range of frequencies, from 1Hz to 150KHz, and supports a wide input voltage of 3.3V to 30V, making it ideal for use in different types of electronic projects and industrial controls.

The module is compact and easy to integrate, perfect for hobbyists and engineers looking to generate accurate PWM signals for their devices.

Features:

• Adjustable Frequency: 1Hz to 150KHz
• Adjustable Duty Cycle: 0% to 100%
• Wide Input Voltage Range: 3.3V to 30V
• LCD Display: Shows frequency and duty cycle for real-time monitoring
• High Precision: Stable PWM signal with fine-tuning capabilities
• Simple Button Operation: Allows easy frequency and duty cycle adjustment
• Multiple Applications: Suitable for motor speed control, light dimming, and various signal generation needs
• Compact Design: Lightweight and portable, suitable for bench or field use

Specifications:

• Model: XY-LPWM Signal Generator Module
• Input Voltage: 3.3V - 30V DC
• Output Voltage: Same as input voltage (3.3V - 30V)
• Frequency Range: 1Hz - 150KHz
  • 1Hz to 999Hz (in 1Hz increments)
  • 1KHz to 9.99KHz (in 0.01KHz increments)
  • 10KHz to 99.9KHz (in 0.1KHz increments)
  • 100KHz to 150KHz (in 1KHz increments)
• Duty Cycle: 0% to 100% adjustable
• Output Current: ≤5mA
• PWM Output Voltage: PWM signal output with voltage level equal to the input voltage
• Display: LCD display for frequency and duty cycle
• Control Method: Four buttons for setting the frequency and duty cycle
• Protection: Reverse polarity protection to prevent damage
• Dimensions: 79mm x 43mm x 28mm (L x W x H)
• Weight: Approximately 35g

Applications:

• Motor Speed Control: Adjust PWM signal to control motor speed
• LED Dimming: Fine-tune LED brightness using PWM signals
• Signal Testing: Use for signal testing in electronics projects
• Pulse Control: Ideal for controlling pulse-width modulated devices
• DIY Projects: Suitable for various hobby electronics and prototyping

This XY-LPWM module is ideal for anyone needing precise PWM control with a user-friendly interface. It offers a wide frequency and duty cycle range, making it a flexible tool for a variety of electronic applications.
