Radxa ROCK 5C (Octa Core) 8GB RK3588S2 Single Board Computer with 6TOPs NPU
Out of stock
This product is out of stock. Are you interested about this product?
Order before 12.00PM
The Radxa ROCK 5C is a powerful and versatile single-board computer designed for developers, hobbyists, and IoT enthusiasts. It features the Rockchip RK3588S2 SoC, an advanced processor equipped with an octa-core CPU that includes both Quad Cortex®-A76 and Quad Cortex®-A55 cores for optimal performance and efficiency. The integrated ARM Mali G610MP4 GPU provides impressive graphical capabilities, supporting up to 8K video decoding and 4K AV1 support for an immersive multimedia experience.
Key Features:
-
High-Performance Processor: The ROCK 5C is powered by the Rockchip RK3588S2 SoC, featuring a quad-core Cortex®-A76 and quad-core Cortex®-A55 CPU, delivering strong computing power for multitasking and heavy applications.
-
Impressive Graphics and Multimedia: With the ARM Mali G610MP4 GPU, the ROCK 5C supports H.265 and VP9 decoding up to 8K@60fps, H.264 decoding up to 8K@30fps, and AV1 decoding at 4K@60fps. It also supports H.264 and H.265 encoding up to 8K@30fps, making it ideal for multimedia applications.
-
Advanced NPU: Equipped with a 6TOPs NPU, the ROCK 5C offers robust AI capabilities, enabling high-speed processing of AI tasks such as image recognition and natural language processing.
-

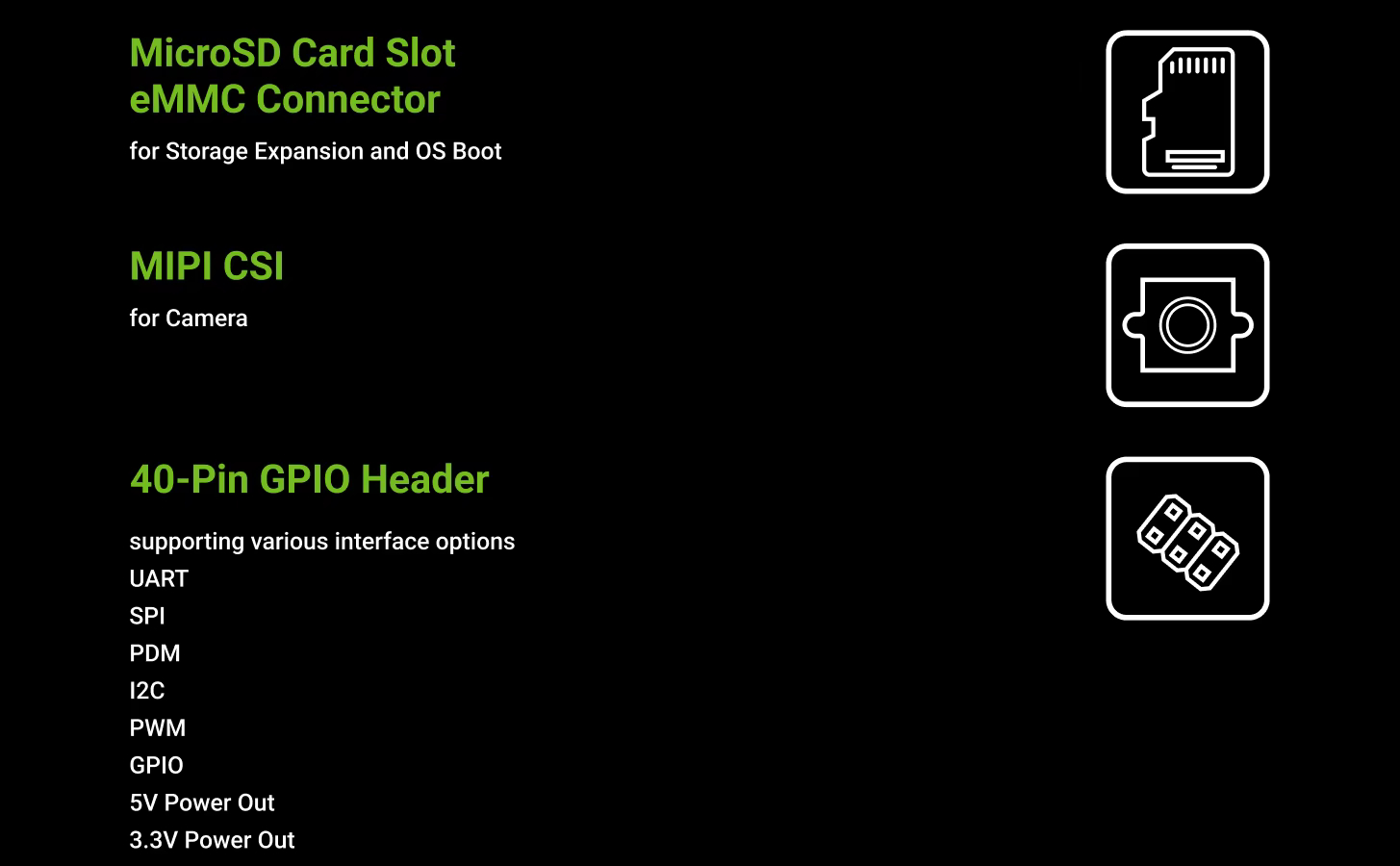

Memory and Storage Options: The ROCK 5C supports up to 32GB LPDDR4x RAM, providing ample memory for high-performance tasks. Storage options include an eMMC connector for eMMC 5.1 modules and a microSD card slot for flexible storage expansion.
-
Comprehensive Connectivity: This SBC includes Gigabit Ethernet with PoE support (PoE HAT required), WiFi 6 (802.11 a/b/g/n/ac/ax), Bluetooth 5.4 with BLE, and an external antenna connector for improved wireless range.
-
USB and I/O Ports: The ROCK 5C is equipped with 2x USB 2.0 Type A HOST ports, 1x USB 3.0 Type A OTG/Host port, and an additional USB 3.0 Type A Host port, offering plenty of options for peripheral connectivity.
-
Dual Display Output: Featuring both an HDMI 2.1 port (up to 8K) and a MIPI DSI interface (up to 2K), the ROCK 5C supports dual simultaneous displays, making it a great choice for multi-screen applications.
-
Camera and Video Input: For camera integration, it supports 1x 4-lane MIPI CSI or 2x 2-lane MIPI CSI, making it suitable for advanced imaging applications.
-
Fan and GPIO Support: Includes a fan header with PWM control for effective thermal management and a 40-Pin GPIO header for prototyping and external hardware integration.
Specifications:

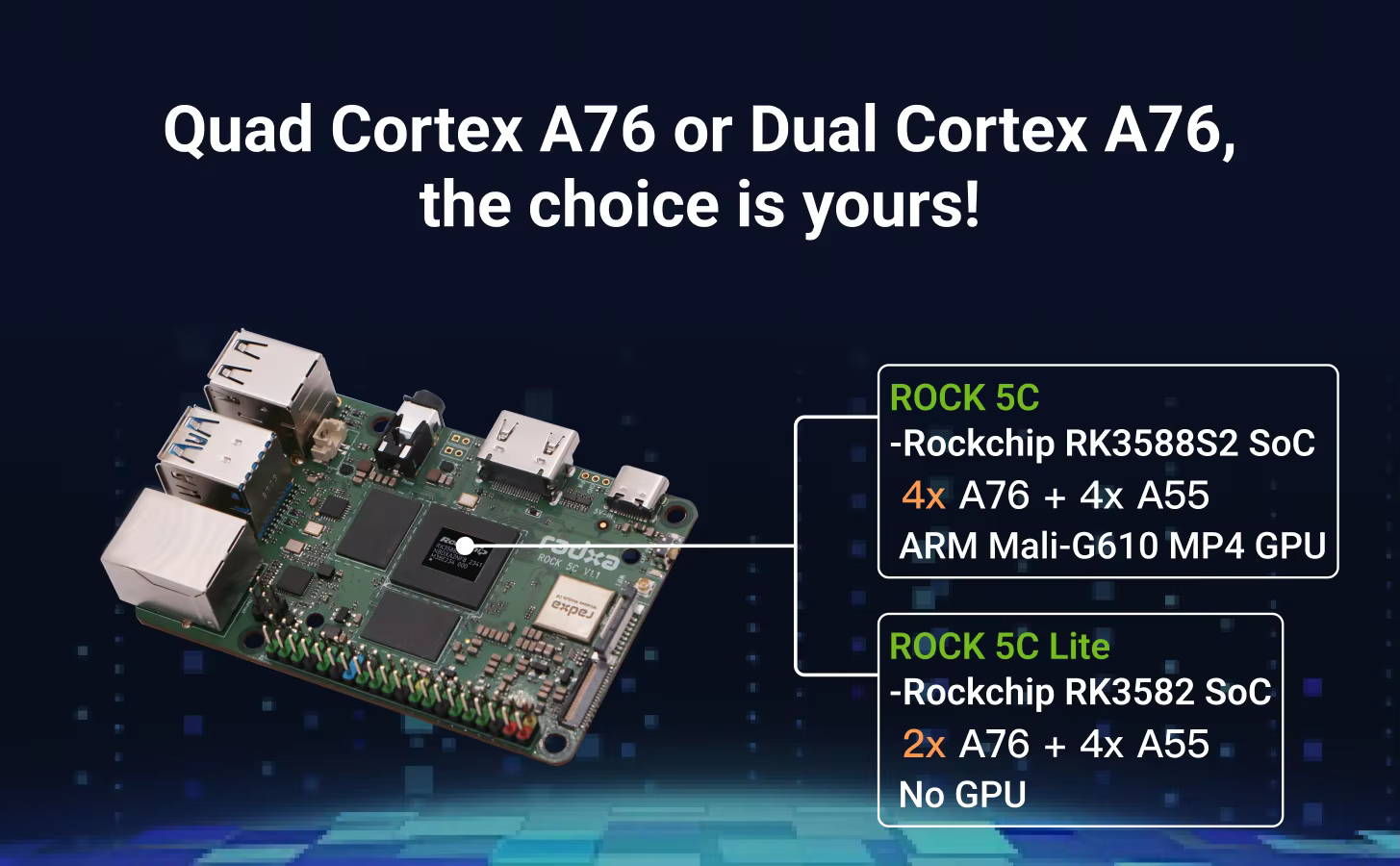

| Radxa ROCK 5C | Radxa ROCK 5C Lite | |
|---|---|---|
| SoC | Rockchip RK3588S2 | Rockchip RK3582 |
| CPU | ARM Quad Cortex®-A76 and Quad Cortex®-A55 | ARM Dual Cortex®-A76 and Quad Cortex®-A55 |
| GPU | ARM Mali G610MP4 | No GPU |
| NPU | 6 TOPs @ INT8 | 5 TOPs @ INT8 |
| Multimedia | H.265, VP9, H.264 decoder up to 8K; AV1 4K; H.265 & H.264 encoder up to 8K | H.264 & H.265 encoder up to 8K |
| ISP | 48M Pixel ISP with HDR & 3DNR | 48M Pixel ISP with HDR & 3DNR |
| Memory | LPDDR4x RAM up to 32GB | LPDDR4x RAM up to 32GB |
| Storage | eMMC 5.1 connector, 1x microSD slot | eMMC 5.1 connector, 1x microSD slot |
| SPI Flash | No | No |
| Audio | 1x Headphone Jack with Microphone Input | 1x Headphone Jack with Microphone Input |
| Video Output | HDMI 2.1 (8K), MIPI DSI (2K), Dual display | HDMI 2.1 (8K), MIPI DSI (2K), Dual display |
| Video Input | 1x 4-lane MIPI CSI or 2x 2-lane MIPI CSI | 1x 4-lane MIPI CSI or 2x 2-lane MIPI CSI |
| USB | 2x USB 2.0 HOST, 1x USB 3.0 OTG/HOST, 1x USB 3.0 HOST | Same as ROCK 5C |
| Ethernet | Gigabit Ethernet with PoE support (via PoE HAT) | Same as ROCK 5C |
| PoE | Additional PoE HAT required | Additional PoE HAT required |
| Wireless | WiFi 6 (802.11 a/b/g/n/ac/ax), BT 5.4, BLE; external antenna connector | Same as ROCK 5C |
| Camera | 1x 4-lane MIPI CSI or 2x 2-lane MIPI CSI | Same as ROCK 5C |
| Antenna | External antenna connector | Same as ROCK 5C |
| PCIe Connector/FPC Connector | PCIe 2.1 1-lane | PCIe 2.1 1-lane, 1x FPC Connector |
| Fan Header | 1x Fan connector with PWM control | 1x Fan connector with PWM control |
| Button | 1x Power button | 1x Power button |
| 40-Pin GPIO Header | Yes | Yes |
| Form Factor | 85 mm x 56 mm | 85 mm x 56 mm |
