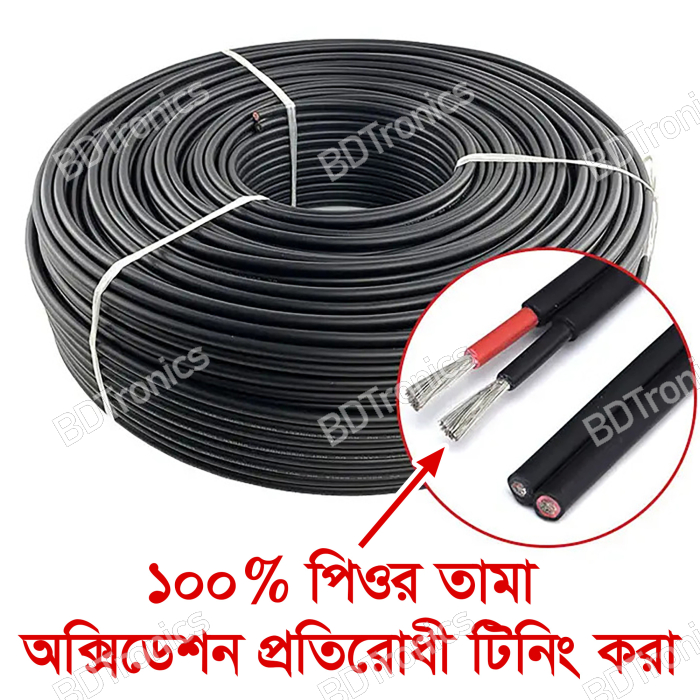

RM 4mm² Photovoltaic Cable PV Cable TÜV 2PfG 1169 Pure Copper Flexible DC Solar Cable (Red+Black 2-Core)
In stock
Order before 12.00PM
Note: 1 qty equals 1 Goj Red + 1 Goj Black cable. If you order more than 1 quantity, we will send a single coil of that selected length WITHOUT any cut in the middle.

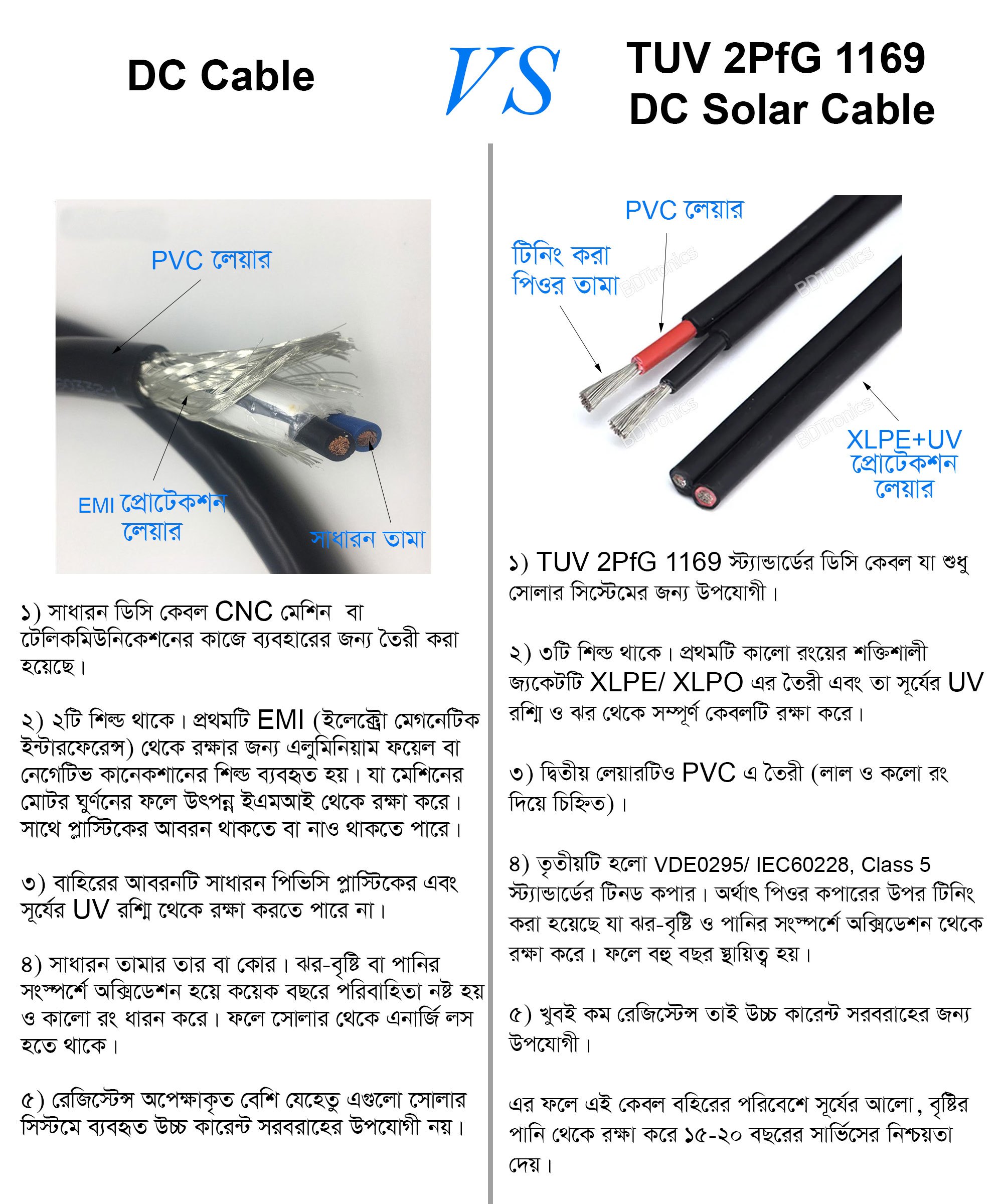

High Quality TUV 2PfG 1169 Tinned Pure Copper PV Cable 1000V have Double insulation, electron-beam cross-linked cables for photovoltaic power station. UV shield and tinned pure copper threads ensure corrission free operation and long service life.
Construction:

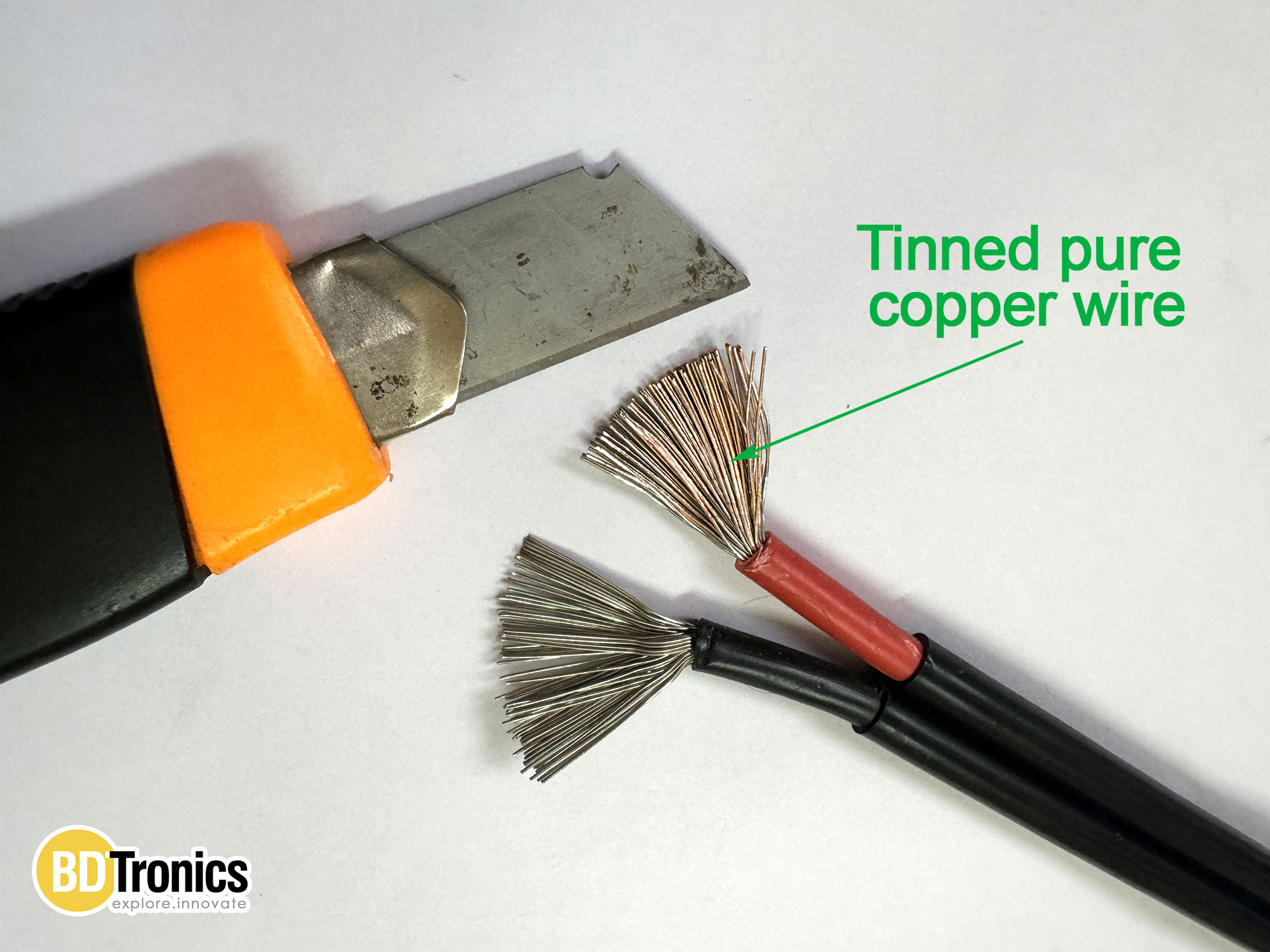

- Conductor: Tinned copper, according to the VDE0295/IEC60228,Class 5

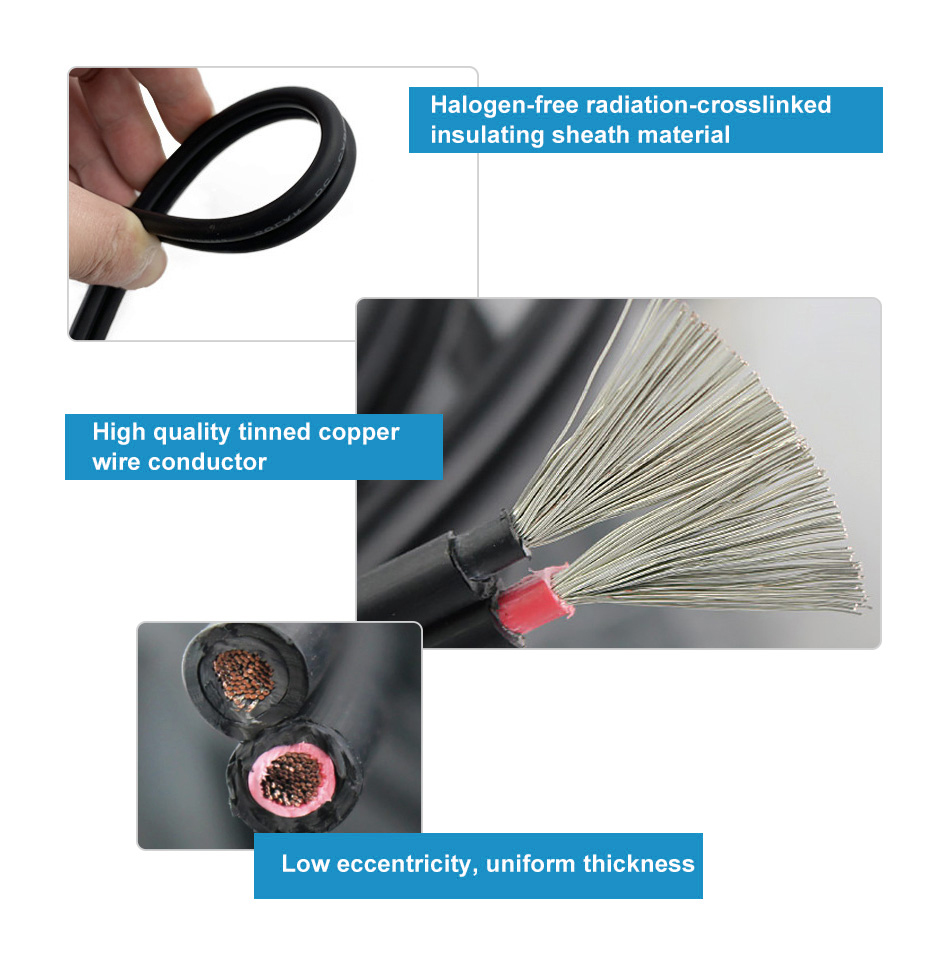

- Insulation: Polyolefin copolymer electron-beam cross-linkd (XLPE/XLPO)
- Outer sheath: Polyolefin coploymer electron-beam cross-linkd (XLPE/XLPO)
- Sheath color: Black
Characteristic:
- Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolyses.

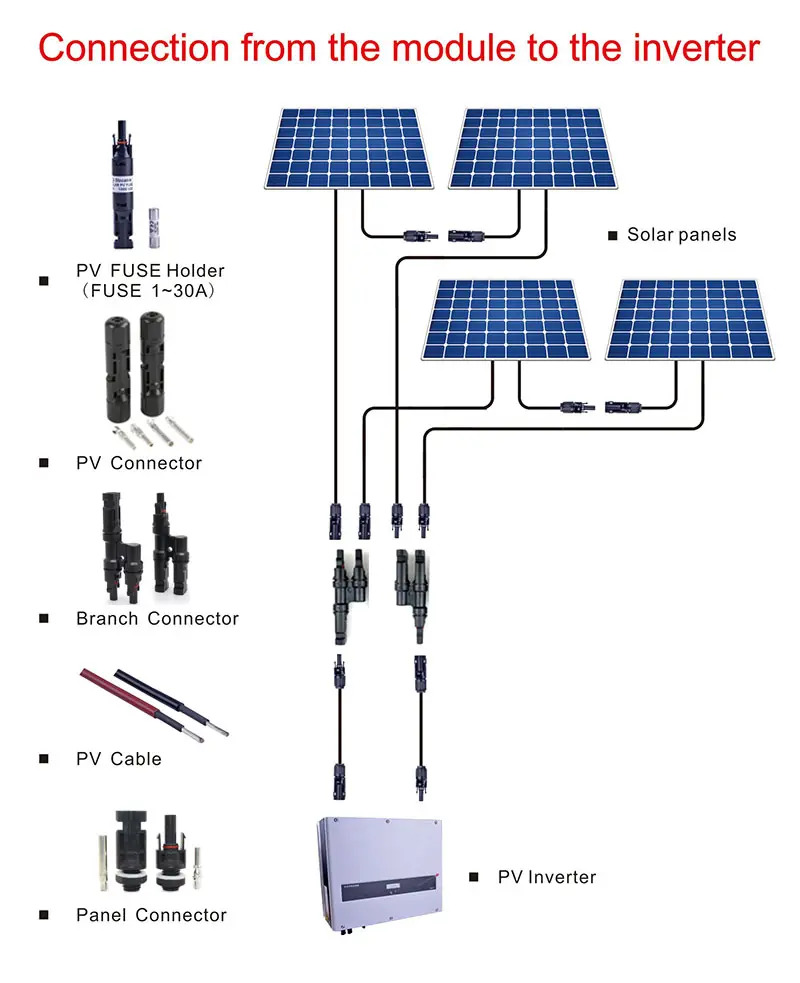

- hese cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
- They operate at DC voltage and provide long life in exposed conditions.
Technical Specification:
- Nominal voltage: U0/U=600/1000V AC,1000/1800V DC
- Test voltage: 6500V,50HZ,5min
- Temperature Rating: -45℃ up to +125℃ -40 F up to +257F
- Ambient Temperature 25 years(TUV): -40℃ up to +90℃ -40 F up to +194F
- Max. Short circuit temperature: 280℃,+536 F
- Bending radius: fixed installation>4×Φ Occasionally moved>5×Φ
Material Properties/Standards:
- Fire-resistance performance: IEC 60332-1
- Smoke emission: IEC 61034; EN 50268-2
- Low fire load: DIN 51900
- Approvals: TUV 2PfG 1169/08.2007PV1-F
- Application standards: UNE211 23;UNE 20.460-5-52,UTE C 32-502
Amperage Rating Table:
| Type | Cross section |
Strand design |
Conductor diameter |
Conductor diameter |
Outer diameter |
Rated voltage |
Rated current |
| mm² | No.x ø (mm) | mm | milliohm/meter | mm | VAC/DC | A | |
| RM 4.0 mm² | 4.0 | 56x ø 0.3 | 2.6 | 4.97 | 6.2 | 1000/1800 | 50 |
| RM 6.0 mm² | 6.0 | 81x ø 0.3 | 3.3 | 3.52 | 7.2 | 1000/1800 | 70 |
| RM 10.0 mm² | 10.0 | 200x ø 0.25 | 4.4 | 2.12 | 8.3 | 1000/1800 | 95 |
Package includes:
- TUV 2PfG 1169 PV Cable of the selected feet length (qty) without any cut
