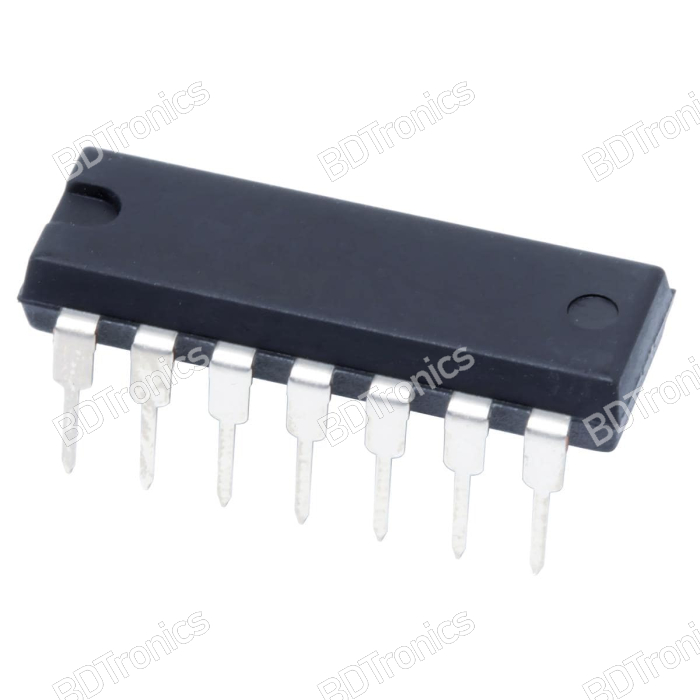

SN74HC00NE4 Logic Gates Quad 2-Input Positive-NAND gates PDIP 14
Out of stock
This product is out of stock. Are you interested about this product?
Order before 12.00PM
Specifications:
- Product Category: Logic Gates
- Product: Single-Function Gate
- Logic Function: NAND
- Logic Family: HC
- Number of Gates: 4 Gate
- Number of Input Lines: 2 Input
- Number of Output Lines: 1 Output
- High Level Output Current: - 5.2 mA
- Low Level Output Current: 5.2 mA
- Propagation Delay Time: 23 ns
- Supply Voltage - Max: 6 V
- Supply Voltage - Min: 2 V
- Minimum Operating Temperature: - 40 C
- Maximum Operating Temperature: + 85 C
- Mounting Style: Through Hole
- Package / Case: PDIP-14
- Packaging: Tube
- Function: NAND
- Height: 4.57 mm
- Input Type: Schmitt Trigger
- Length: 19.3 mm
- Logic Type: 2-Input NAND
- Number of Bits: 4 bit
- Operating Supply Current: 20 uA
- Operating Supply Voltage: 5 V
- Operating Temperature Range: - 40 C to + 85 C
- Output Type: CMOS
- Product Type: Logic Gates
- Subcategory: Logic ICs
- Width: 6.35 mm
- Unit Weight: 0.032734 oz
Technical Specifications
Request Stock
Recently viewed products
You might also be interested in...
Customers who bought this also bought...
General Questions
-
What is the latest price of the SN74HC00NE4 Logic Gates Quad 2-Input Positive-NAND gates PDIP 14 in Bangladesh?
The latest price of SN74HC00NE4 Logic Gates Quad 2-Input Positive-NAND gates PDIP 14 in Bangladesh is BDT 23.75 . You can buy the SN74HC00NE4 Logic Gates Quad 2-Input Positive-NAND gates PDIP 14 at the best price on BDTronics.com or contact us via phone.
-
Where to buy SN74HC00NE4 Logic Gates Quad 2-Input Positive-NAND gates PDIP 14 in Bangladesh?
You can buy SN74HC00NE4 Logic Gates Quad 2-Input Positive-NAND gates PDIP 14 online by ordering on BDTronics.com or directly collect by visiting our store in person. BDTronics is a trusted provider of high-quality electronics, 3D printers, solar systems, and robotics parts. We offer fast shipping across the country via courier service.
-
What are the delivery options of SN74HC00NE4 Logic Gates Quad 2-Input Positive-NAND gates PDIP 14 in Bangladesh?
We provide home delivery service all over Bangladesh. We support cash on delivery, bKash and Credit Card (Visa/ MasterCard/ Amex) payment solutions. The delivery time usually takes 1-2 days inside Dhaka and 2-3 days outside Dhaka.
