The SPI BIOS Flash Non-Dismantling Test Program Clip is a versatile tool designed for programming and testing BIOS chips, particularly used in the maintenance and repair of devices like motherboards, laptops, and embedded systems. This clip allows for non-invasive testing and programming of BIOS flash memory, eliminating the need for chip removal, which can damage the hardware or void warranties. It supports a range of flash memory models, including 24C, 93C, and 25LF series, with the common SOP8 package configuration.

This tool provides a quick, efficient, and safe method for reading, writing, and testing BIOS chips, making it ideal for technicians, repair shops, and hardware developers.

Features:

• Non-Dismantling Design: No need to remove or desolder chips from the board.
• Wide Compatibility: Supports 24C, 93C, and 25LF SPI flash memory chips in SOP8 package.
• High Precision: Ensures accurate connections to the pins for reliable programming and testing.
• Easy to Use: Simple clip-on design for fast setup, saving time in troubleshooting and diagnostics.
• Durable and Reliable: Made with high-quality materials for long-lasting performance and consistent use.

Specifications:

• Type: SPI BIOS Flash Test Program Clip
• Supported Chips:
  • 24C Series (e.g., 24C02, 24C08, etc.)
  • 93C Series (e.g., 93C46, 93C56, etc.)
  • 25LF Series (e.g., 25LF020, 25LF040, etc.)
• Package Type: SOP8 (Small Outline Package)
• Connectivity: SPI Interface for programming and testing
• Operating Voltage: 3.3V or 5V (depending on the chip)
• Clip Design: Non-invasive, clip-on design for easy use
• Application: BIOS chip programming and diagnostics
• Temperature Range: 0°C to 70°C (Standard operating range)
• Compatibility: Compatible with major BIOS programming software and tools

Usage Instructions:

1. Ensure that the BIOS chip to be tested or programmed is properly powered.
2. Attach the program clip to the chip's pins by aligning the clip with the SOP8 package.
3. Connect the clip to your SPI programmer or compatible interface tool.
4. Use appropriate programming software to read, write, or verify the BIOS chip.

Package Includes:

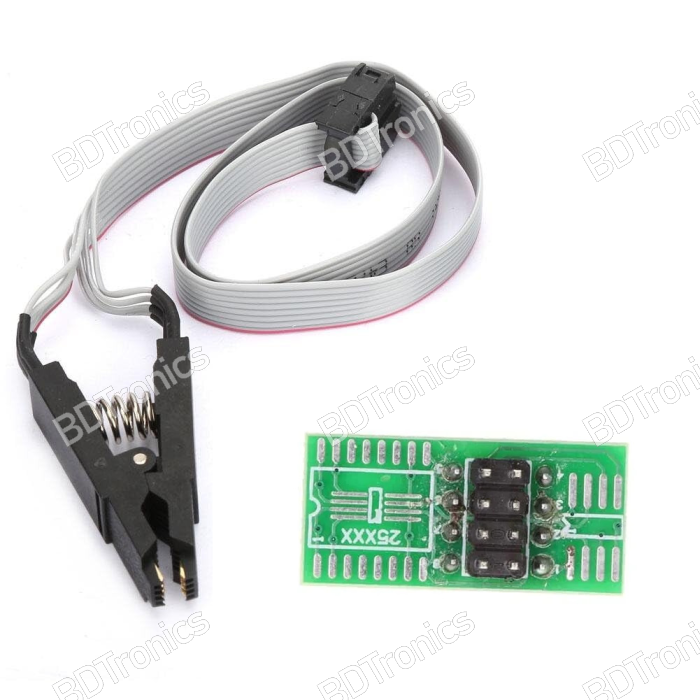

• 1 x SPI BIOS Flash Non-Dismantling Test Program Clip (SOP8)
