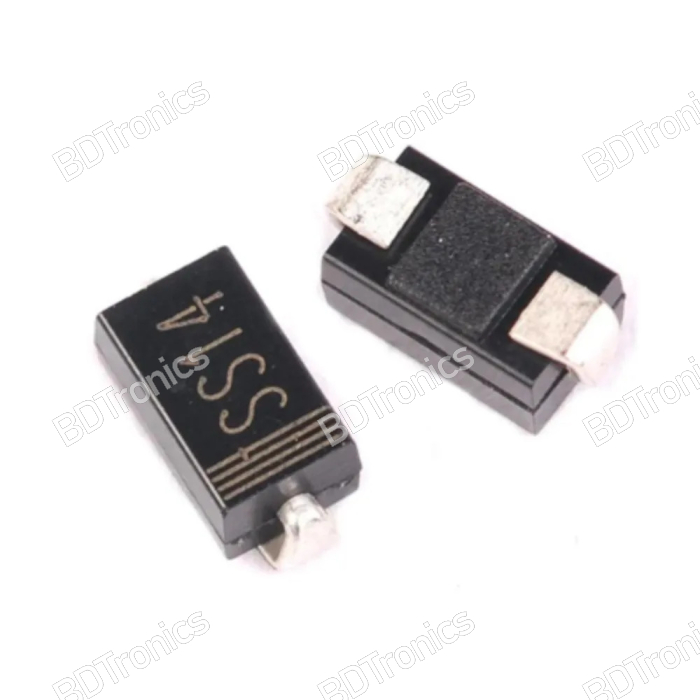

SS14 1N5819 Schottky Diode 1A 40V SMD SOD-123
In stock
Order before 12.00PM
The 1N5819 Schottky diode is a versatile, high-performance diode designed for use in a variety of power applications, including power supplies, DC-DC converters, and reverse voltage protection. It features a 1A current rating and a 40V reverse voltage capability. This Schottky diode is particularly known for its low forward voltage drop, high efficiency, and fast switching characteristics. It is commonly available in the SS14 SMD package, making it ideal for compact, surface-mount designs.
Specifications:
- Part Number: 1N5819 (Also labeled as SS14 depending on the manufacturer)
- Type: Schottky Diode
- Forward Current (I_F): 1A
- Peak Reverse Voltage (V_R): 40V
- Maximum Forward Voltage (V_F): 0.45V at 1A
- Reverse Leakage Current (I_R): 0.5 µA at 40V
- Package Type: SS14 (SMD, Surface-Mount)
- Mounting Type: Surface Mount (SMD)
- Recovery Time (T_rr): < 30ns
- Operating Temperature Range: -55°C to +125°C
- Power Dissipation (P_d): 1W
- Applications:
- Power supplies
- DC-DC converters
- Reverse polarity protection
- Low-voltage circuits
- High-efficiency power electronics
- Battery-powered devices
- LED drivers
