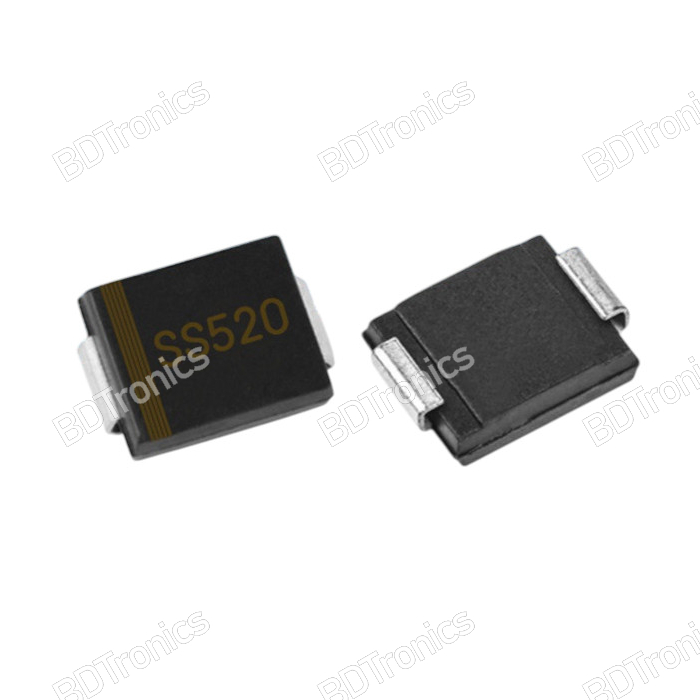

SS520 200V 5A SMD Schottky Diode DO-214AB SMC
In stock
Order before 12.00PM
The SS520-SMC is a high-performance Schottky diode designed to handle 200V with a current rating of 5A. It is optimized for applications requiring efficient rectification, low forward voltage drop, and fast switching performance. The diode's Schottky structure ensures minimal power loss and lower thermal stress, making it ideal for power supplies, battery charging circuits, and high-frequency applications. Packaged in an SMC (DO-214AB) form factor, the SS520-SMC offers robust performance in both commercial and industrial settings.
Specifications:
- Part Number: SS520-SMC
- Type: Schottky Diode
- Peak Reverse Voltage (V_RRM): 200V
- Average Forward Current (I_F): 5A
- Forward Voltage Drop (V_F): 920mV (at 5A)
- Peak Forward Surge Current: 100A (8.3ms single half sine-wave)
- Reverse Leakage Current (I_R): 10µA at 200V
- Package Type: SMC (DO-214AB)
- Junction Temperature (T_j): -65°C to +150°C
- Thermal Resistance (R_thJA): 60°C/W
- Capacitance (C_j): 300pF (typical at 1 MHz)
- Recovery Time: Fast
- Mounting Type: Surface Mount
- Applications:
- Power supplies
- DC-DC converters
- Battery charging circuits
- Power rectifiers
- Over-voltage protection
- Automotive and industrial applications
