STLINK V3 SET - STM8 STM32 Microcontroller in-Circuit Debugger and Programmer (SPI, I2C, CAN, GPIOs)
In stock
Order before 12.00PM
Customer Reviews
Next-generation STLINK-V3SET probe delivers enhanced flexibility and efficiency for debugging and programming microcontrollers.
Along with JTAG/SWD/SWIM typical interfaces, a virtual com port and a multipath bridge allows the STLINK-V3SET to communicate through the microcontroller UART, I2C, SPI, CAN interfaces and GPIOs. This lets developers conveniently monitor run-time data on the host PC, and simplify product maintenance with firmware update using a bootloader.
With three times the performance and with an intuitive drag-and-drop Flash memory programming, the STLINK-V3SET helps users save development time and easily reprogram devices anywhere.
Features:
- Stand-alone probe with modular extensions
- Self-powered through a USB connector (Micro-B)
- USB 2.0 high-speed compatible interface
- JTAG / serial wire debugging (SWD)
- 3 V to 3.6 V application voltage support and 5 V tolerant inputs
- Flat cables STDC14 to MIPI10/STDC14/MIPI20 (connectors with 1.27 mm pitch)
- JTAG communication support
- SWD and serial wire viewer (SWV) communication support
- Virtual COM port (VCP)
- 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
- VCP frequency up to 15 MHz
- Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs
- 3 V to 3.6 V application voltage support and 5 V tolerant inputs
- Direct firmware update support (DFU)
- Drag-and-drop Flash programming
- Two color LEDs: communication, power
STLINK Series Selection Guide:
| Item | V3MINIE | V3SET | V2 |
|---|---|---|---|
| JTAG/SWD application voltage | 1.65V~3.6V① | 3V~3.6V | 1.65V~3.6V① |
| SWIM application voltage | N/A | 1.65V~5.5V | 1.65V~5.5V |
| SWV support | YES② | ||
| Debug interface | multi | multi③ | 2 |
| LED Indicator | two colors④ | ||
| ① ST-LINK/V2 and STLINK-V3MINIE support STM32 low-power devices. ② Only available for STM32 at present. ③ STLINK-V3SET features GPIO port besides the programming port. ④ Two colors LED indicates both power and communication. |
|||

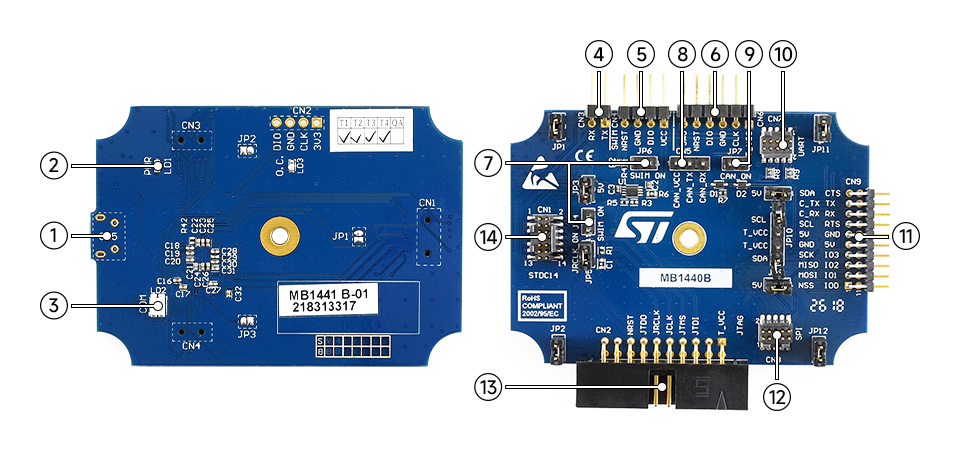

Board Layout:
- Micro USB port
- Power LED indicator
- COM LED indicator
COM LED is blinking RED: the first USB enumeration with the PC is taking place.
COM LED is RED: communication between STLINK-V3SET and the PC is established (end of enumeration).
COM LED is blinking GREEN/RED: data are being exchanged between the target and the PC. - UART header (VCP)
- SWIM header
- SWD header
- SWIM ON/OFF
enabled when jumper cap is connected - CAN header
- CAN ON/OFF
enabled when jumper cap is connected - UART Bridge
- SPI/UART/I2C/CAN/GPIOs Bridge
- SPI Bridge
- JTAG20 header
- STDC14 header
Technical characteristics:
- FLASH programming drag and drop
- The frequency of VCP to 15 MHz
- Support the supply voltage of 3 V to 3.6 V for the UART interface and the inputs tolerate 5 V
- Supports low and high speed SWIM
- Communication support JTAG
- Direct support for firmware update (DFU)
- USB 2.0 interface
- Powered through a microUSB connector (microUSB B)
- Probe with extensions.
- Signal LEDs
Package contents
- STLINK-V3 Set
- Expansion board with mounting elements
- Wire JTAG
