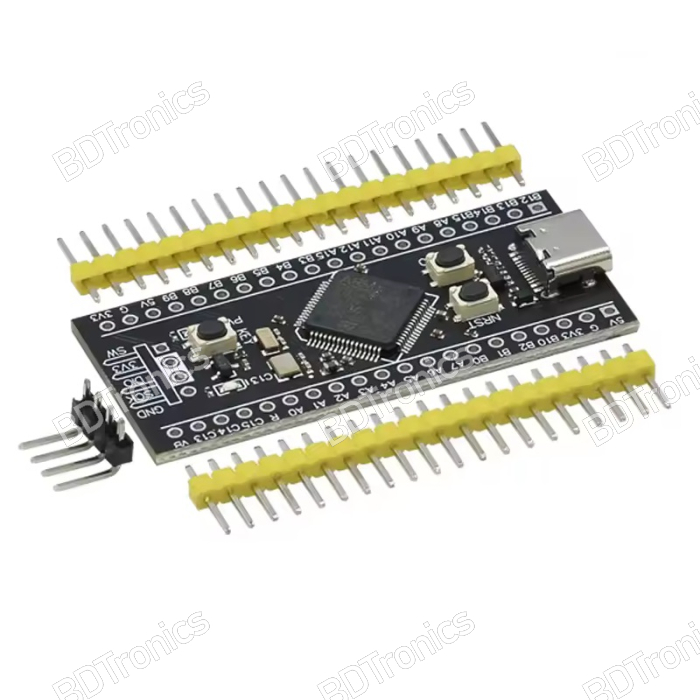

The STM32F401RCT6 Core Board is a powerful development platform based on the STM32F401RCT6 microcontroller, designed to support MicroPython. This system board allows you to quickly start developing embedded applications using MicroPython, offering an easy and flexible way to leverage the capabilities of the STM32F4 series with its ARM Cortex-M4 core. It provides a rich set of I/O options and communication protocols, ideal for prototyping, DIY projects, and embedded system development.

Features:

• Microcontroller: STM32F401RCT6, based on the ARM Cortex-M4 processor core.
• Operating System: Supports MicroPython, making it easy to develop embedded applications using Python.
• Clock Speed: 84 MHz, providing efficient processing power for various tasks.
• Flash Memory: 512 KB for program storage, allowing large application space for embedded systems.
• RAM: 96 KB of SRAM for handling dynamic data.
• Communication Interfaces:
  • I2C: For communication with sensors and peripherals.
  • SPI: For high-speed communication with external devices.
  • UART: For serial communication.
  • USB: For device connectivity (USB OTG).
  • CAN: For automotive and industrial applications.
• GPIO Pins: Multiple general-purpose input/output pins for connecting to external circuits.
• PWM: Provides PWM outputs for controlling motors, lights, etc.
• ADC/DAC: 12-bit ADC and DAC for analog signal processing.
• Timers: Multiple timers for event scheduling and periodic tasks.
• Debug Interface: SWD (Serial Wire Debug) for debugging applications.
• MicroPython Support: Preloaded or easily configurable to run MicroPython for rapid development in Python.

Specifications:

• Microcontroller: STM32F401RCT6 (ARM Cortex-M4).
• Core Speed: 84 MHz.
• Flash Memory: 512 KB.
• SRAM: 96 KB.
• Operating Voltage: 3.3V.
• Communication Interfaces:
  • I2C, SPI, UART, USB (OTG), CAN.
• GPIO Pins: 50+ I/O pins (depending on package and configuration).
• Timers: 14-bit timers and 16-bit timers.
• ADC: 12-bit, 16 channels, up to 2.4 MSPS.
• DAC: 12-bit.
• PWM Channels: Multiple PWM channels for motor and actuator control.
• MicroPython: Supports MicroPython, allowing for easy programming in Python.
• Power Supply: 5V input, with onboard voltage regulation for 3.3V logic.
• Package: LQFP-64 (64-pin package).
• Operating Temperature Range: -40°C to +85°C.
• Dimensions: Compact size for easy integration into embedded projects.
• Programming/Debugging: Via USB or JTAG/SWD interface.

Applications:

• Embedded Systems Development: Quickly prototype and develop embedded applications with the STM32F401R microcontroller.
• IoT Projects: Connect sensors, actuators, and cloud systems with I2C, SPI, and UART communication.
• Robotics: Control motors, sensors, and actuators with PWM and GPIO.
• Data Acquisition: Use ADC/DAC for analog signal processing.
• Industrial Control: Utilize CAN protocol for industrial communication in control systems.
• Educational Purposes: Learn embedded development using MicroPython, perfect for students and hobbyists.
• Automation: Build automated systems with timers, sensors, and control logic in Python.
