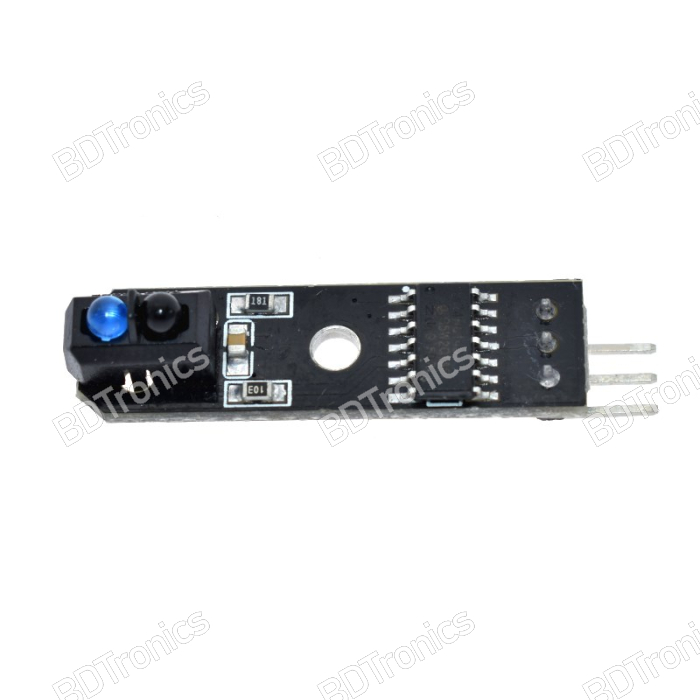

The TCRT5000 is an infrared (IR) reflective sensor module commonly used in smart car and robotics applications for line following and obstacle detection. Here are the details of the TCRT5000 IR reflex tracking sensor module:

Overview:

• Sensor Type: TCRT5000 (consists of an infrared emitter and a phototransistor)
• Operating Principle: Reflective IR sensor (emits infrared light and detects the reflection)
• Application: Typically used in smart cars (robotic vehicles) for line following, edge detection, and obstacle avoidance.

Key Specifications:

1. Operating Voltage: Typically operates at 5V DC.
2. Detection Range: Effective range varies based on the surface and ambient lighting conditions, typically up to a few millimeters to several centimeters.
3. Output Type: Digital (provides a HIGH or LOW signal based on detection) or Analog (provides a variable voltage output proportional to the intensity of reflected IR light).
4. Response Time: Fast response time suitable for real-time applications.
5. Wavelength: Emitting wavelength is around 950 nm (near-infrared).

Features:

• Compact size, suitable for integration into small robotic platforms.
• Easy to interface with microcontrollers and development boards.
• Adjustable sensitivity through external components.
• Typically comes with onboard indicator LEDs for visual feedback.

Typical Usage:

• Line Following: Detects lines or tracks on the ground by sensing the contrast between the line and its background.
• Obstacle Detection: Can detect the presence of obstacles based on their reflective properties.
• Edge Detection: Used to sense edges of platforms or tabletops.
• Speed Detection: In some applications, used to measure speed relative to ground markings.

How to interface with Arduino?

The TCRT5000 is an IR reflective sensor module used for detecting objects and measuring distances by emitting and reflecting infrared light. To interface the TCRT5000 with an Arduino Uno, you'll connect the sensor to the Arduino and read its output.

Materials Needed:

• TCRT5000 IR Reflective Sensor Module
• Arduino Uno
• Jumper wires
• Breadboard (optional)

Connections:

1. Power Supply:

   • VCC on TCRT5000 to 5V on Arduino.
   • GND on TCRT5000 to GND on Arduino.

2. Output Signal:

   • OUT on TCRT5000 to Analog Input (e.g., A0) on Arduino for analog readings, or to a Digital Input pin (e.g., D2) if you want to use it as a digital sensor.

Code Example:

Here are examples for both analog and digital readings.

Analog Reading:

This code reads the analog value from the sensor, which changes based on the distance of the object from the sensor.

const int sensorPin = A0; // Analog pin connected to OUT
int sensorValue = 0; // Variable to store the sensor value

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  sensorValue = analogRead(sensorPin); // Read the sensor value
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue); // Print the sensor value to the serial monitor
  delay(500); // Wait for 0.5 seconds before the next reading
}

Digital Reading:

If you want to use the TCRT5000 as a digital sensor, you can read its output as either HIGH or LOW. In this mode, the sensor typically outputs LOW when it detects an object and HIGH otherwise.

const int sensorPin = 2; // Digital pin connected to OUT
int sensorState = 0; // Variable to store the sensor state

void setup() {
  pinMode(sensorPin, INPUT); // Set the sensor pin as input
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  sensorState = digitalRead(sensorPin); // Read the digital value
  if (sensorState == LOW) {
    Serial.println("Object detected");
  } else {
    Serial.println("No object detected");
  }
  delay(500); // Wait for 0.5 seconds before the next reading
}

Additional Notes:

• Power Requirements: The TCRT5000 typically operates at 5V, which is compatible with the Arduino Uno.
• Output Type: The TCRT5000 has both analog and digital output pins. If you're using the analog output, you'll get a varying voltage depending on the distance of the detected object. If you're using the digital output, you'll get a simple HIGH or LOW signal based on the object's presence.
• Calibration: Depending on your specific application, you may need to calibrate the sensor's sensitivity by adjusting the potentiometer on the module (if available).
