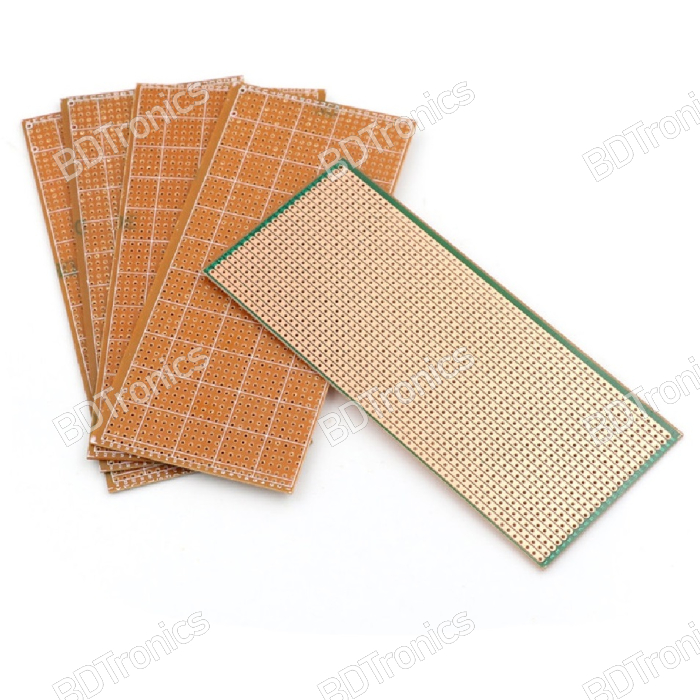

The Veroboard Line Type is a versatile and easy-to-use prototyping board designed for creating electronic circuits quickly and efficiently. Featuring a grid of copper tracks running in parallel lines, this board allows for straightforward circuit assembly and modification. Ideal for hobbyists, students, and engineers, it provides a reliable platform for developing and testing various electronic projects.

Key Features:

• Material: FR4 (Glass-Reinforced Epoxy Laminate)
• Type: Line Type (Copper tracks running parallel in a grid)
• Dimensions: Custom sizes available (check product specifications for exact dimensions)
• Copper Tracks: Pre-arranged copper tracks on one side of the board, allowing for easy circuit connections and modifications.
• Grid Pattern: Provides a standard grid for precise component placement and easy circuit routing.
• Color: Natural copper finish, which can be modified or covered as needed.

Applications:

• Prototyping and developing electronic circuits
• Educational projects for learning PCB design and soldering
• DIY electronics and hobbyist projects
• Testing and modifying circuit designs before creating a custom PCB

Instructions for Use:

1. Design Your Circuit: Start by creating a schematic diagram of your circuit. Plan how the components will be arranged on the Veroboard, considering the layout of the copper tracks.

2. Component Placement: Insert your electronic components into the holes of the Veroboard. The line-type copper tracks provide easy access to power rails and connections.

3. Soldering: Solder the component leads to the copper tracks. Use a fine-tip soldering iron for clean and precise solder joints. Ensure that all connections are secure and check for solder bridges or cold joints.

4. Testing: After soldering, inspect the board visually for any issues. Use a multimeter to check for continuity and confirm that the circuit operates correctly.

5. Modification: If needed, you can cut or modify the copper tracks using a cutting tool or a soldering iron to adapt the board to your specific circuit design.

6. Finishing: Clean the board with isopropyl alcohol to remove any flux residues and ensure a clean, professional finish.

Safety Precautions:

• Handle the Veroboard with clean hands to avoid contamination.
• Wear safety goggles and work in a well-ventilated area when soldering to avoid inhaling fumes.
• Dispose of soldering waste and flux according to local regulations.

Package Includes:

• 1 x Veroboard Line Type (dimensions and quantity as specified)
