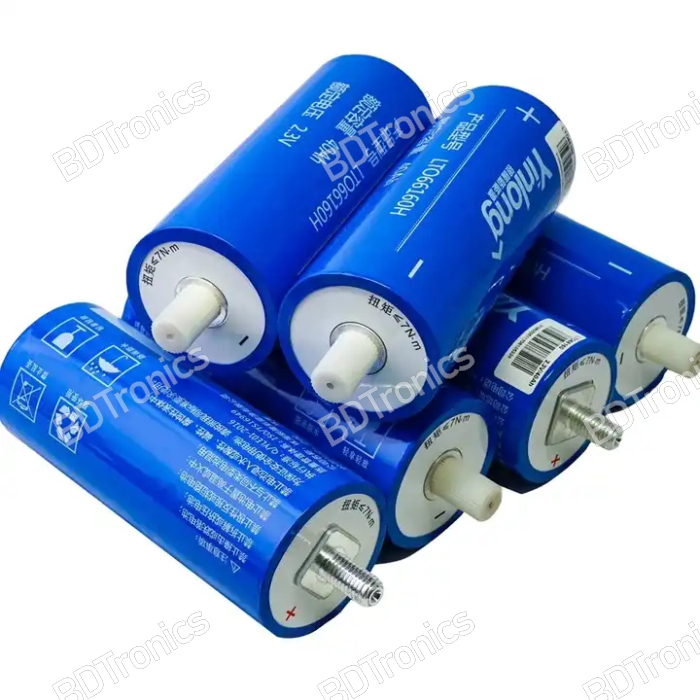

Yinlong Brand New 40Ah A+ Grade LTO Lithium Titanate 30000 Cycle LiFePO4 Rechargeable Battery Cells 2.3v
In stock
Order before 12.00PM
About Yinlong brand:
Yinlong Energy China Ltd. was established in 2008 in Zhuhai, China. In January 2010, Yinlong China acquired ALTAIR NANO (US) a leading innovator of LTO battery technologies with over 40 years of industry experience. Yinlong Middle-East - based in the Jebel Ali Free-Zone, Dubai - is the regional office for Yinlong Energy China Ltd.
-
10 years warranty
-
30 years of service life.*
-
Full amperage rating/ capacity guranteed.
- Please do not compare our batteries with local market products.
-
Our battery cells and packs are imported, original, brand new, A-grade, capacity guranteed.
-
We do not just rely on QR code.
-
We test the capacity of every batch of batteries to meet the capacity requirement.
-
These are heavy-duty batteries used for electric vehicle/ car/ truck. You can also use it in your IPS/ UPS.
-
These batteries can provide upto 30 years of service depending on the DOD, discharge current rate, using proper battery compression force etc. which we ensure during building the packs.
* Physical damage/ impact/ stress will decrease the service life of batteries, cause permanent damage and void warranty.
Technical Specifications:
- Battery type: LTO 66160K
- Chemistry: Lithium Titanate Oxide
- Nominal capacity: 45Ah
- Nominal voltage: 2.3V
- Weight: 1.25kg
- Internal impedance: ≤0.7mΩ
- Cycle life:≥25000 times, 80% DOD, capacity rentation≥80%
- Dimension: 66*160mm
- Cell height: 202mm (including terminals)
- Max.cont.charging/discharging current: 450A(10C)
- Max.pulse charging/discharging current: 900A(20C,10s)
- Charging cut-off voltage: 2.9V
- Discharging cut-off voltage: 1.5V
- Applications: Energy Storage/UPS
- Operation temperature: -50-65℃
- Life duration: 30 years
Applications:
Electric vehicle, electric bikes, scooters, boats, submarines, golf carts, communications, energy storage, Intelligent network, etc.
Important Notes:
- One Cell will come with one set busbar, bolt, and washer for free.
- Each cell shall be used under strict monitoring, control, and protection by the BMS.
- Before the first use, always charge the cells to full voltage.
- We will match (capacity, voltage, resistance) all cells before delivery.
- The battery is suitable for DIY lovers with experience.
- We will recommend you contact our customer support first if you are not familiar with this type of battery chemistry and are interested in purchasing these batteries.
Package Includes:
- 1 x Yinlong 40Ah LTO Battery Cell
- 1 x Busbar, Bolt & Washer
